SYMPTOMS - TRANSFER CASE

Strategy Based Diagnostics

Review the system operations in order to familiarize yourself with the system functions. Refer to Transfer Case Disassembled View, Transfer Case Description and Operation, and Rear Drive Axle Description and Operation , . All diagnosis on a vehicle should follow a logical process. Strategy based diagnostics is a uniform approach for repairing all systems. The diagnostic flow may always be used in order to resolve a system condition. The diagnostic flow is the place to start when repairs are necessary. For a detailed explanation, refer to Strategy Based Diagnosis .

Visual/Physical Inspection

  • Inspect for aftermarket devices, which could affect the operation of the vehicle. Refer to Checking Aftermarket Accessories .
  • Inspect the easily accessible or visible system components for obvious damage or conditions, which could cause the symptom.
  • Inspect for the correct lubricant levels and the proper viscosities.
  • Verify the exact operating conditions under which the concern exists. Note factors such as vehicle speed, road conditions, ambient temperature, and other specifics.
  • Compare the driving characteristics or sounds, if applicable, to a known good vehicle and ensure you are not trying to correct a normal condition.

Intermittent

Test the vehicle under the same conditions that the customer reported in order to verify the system is operating properly.

Symptom List

Refer to a symptom diagnostic procedure from the following list in order to diagnose the symptom:

  • Diagnostic System Check - Vehicle .
  • Noisy in Drive.
  • Noisy When Coasting.

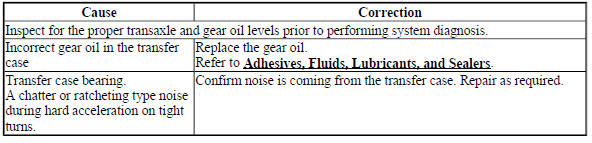

  • Intermittent Noise.
  • Constant Noise.
  • Transfer Case Leak Diagnosis.

NOISY IN DRIVE

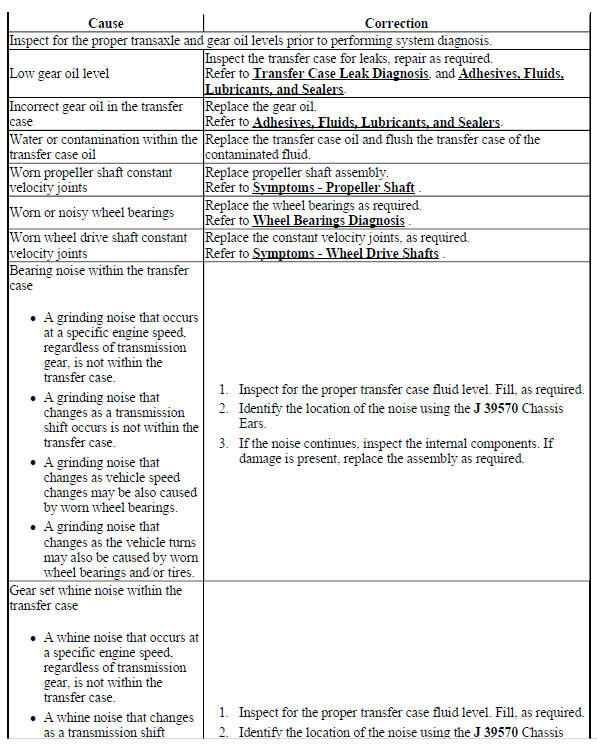

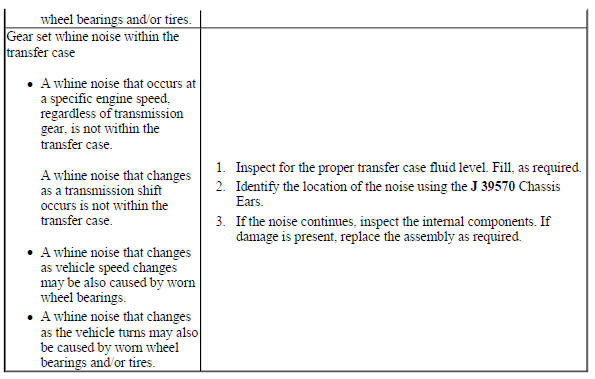

Noisy in Drive

Noisy in Drive

Noisy in Drive

NOISY WHEN COASTING

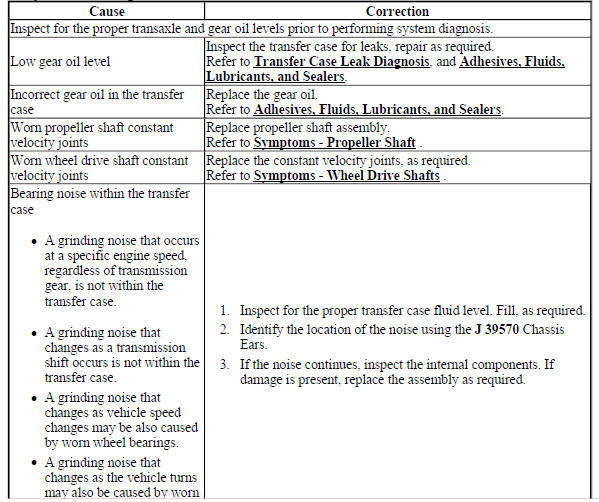

Noisy When Coasting

Noisy When Coasting

Noisy When Coasting

INTERMITTENT NOISE

Intermittent Noise

CONSTANT NOISE

Constant Noise

Constant Noise

Constant Noise

TRANSFER CASE LEAK DIAGNOSIS

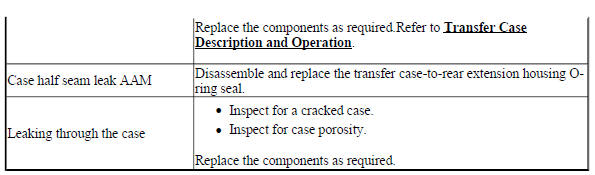

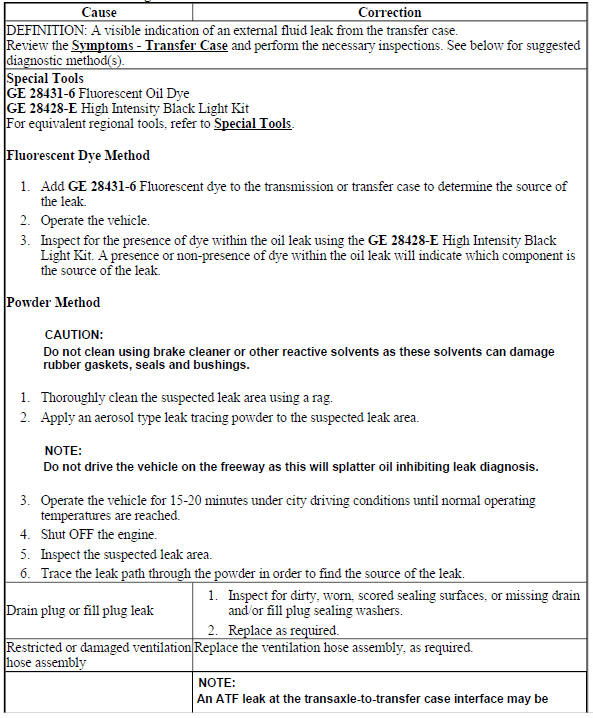

Transfer Case Leak Diagnosis

Transfer Case Leak Diagnosis

Transfer Case Leak Diagnosis

Transfer Case Leak Diagnosis
