Buick Encore: Front floor console wiring harness replacement (encore)

Buick Encore 2012-2019 Service Manual / Accessories & Equipment / Instrument Panel and Console Trim / Front floor console wiring harness replacement (encore)

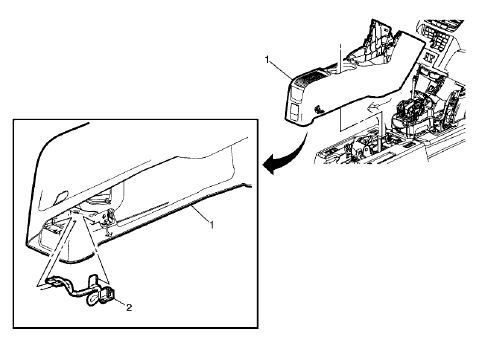

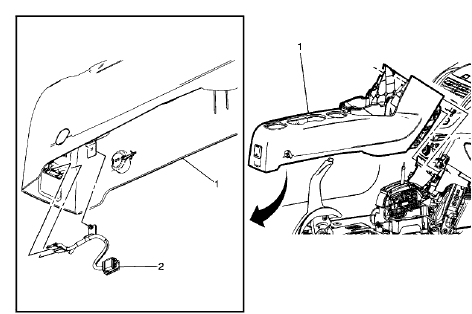

Fig. 120: Front Floor Console Wiring Harness
Fig. 120: Front Floor Console Wiring Harness

Front Floor Console Wiring Harness Replacement (Encore)

Front Floor Console Wiring Harness Replacement (Encore)

FRONT FLOOR CONSOLE WIRING HARNESS REPLACEMENT (Encore)

Fig. 121: Front Floor Console Wiring Harness
Fig. 121: Front Floor Console Wiring Harness

Front Floor Console Wiring Harness Replacement (Encore)

Front Floor Console Wiring Harness Replacement (Encore)

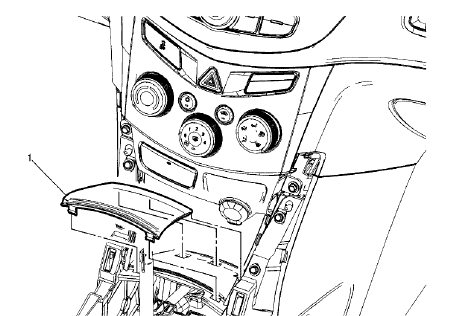

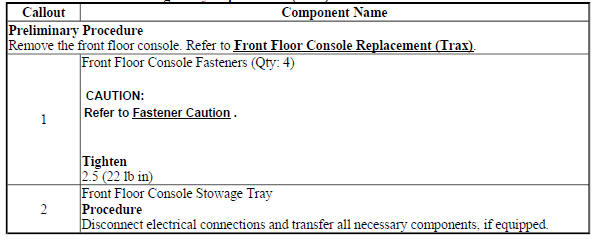

FRONT FLOOR CONSOLE STOWAGE TRAY REPLACEMENT (ENCORE)

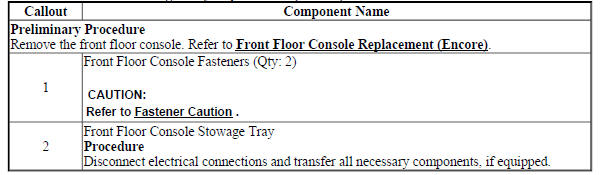

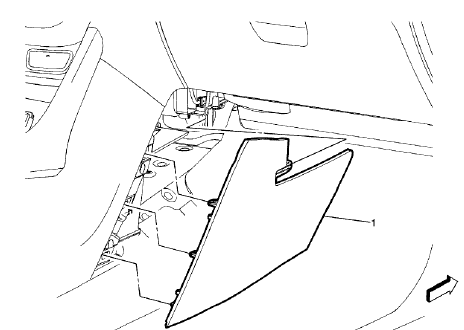

Fig. 122: Front Floor Console Stowage Tray
Fig. 122: Front Floor Console Stowage Tray

Front Floor Console Stowage Tray Replacement (Encore)

Front Floor Console Stowage Tray Replacement (Encore)

FRONT FLOOR CONSOLE STOWAGE TRAY REPLACEMENT (Encore)

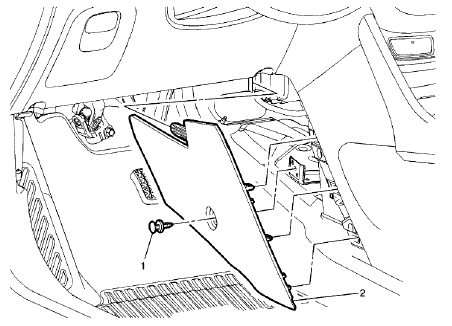

Fig. 123: Front Floor Console Stowage Tray
Fig. 123: Front Floor Console Stowage Tray

Front Floor Console Stowage Tray Replacement (Encore)

Front Floor Console Stowage Tray Replacement (Encore)

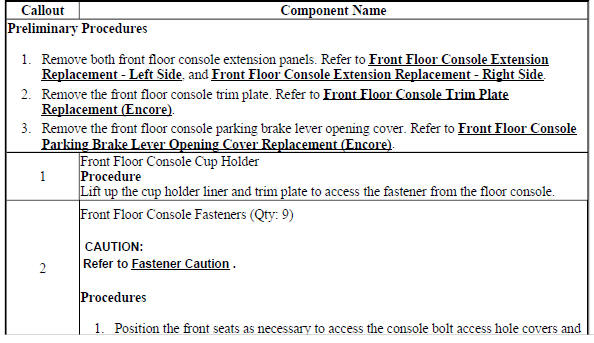

FRONT FLOOR CONSOLE CUP HOLDER REPLACEMENT (ENCORE)

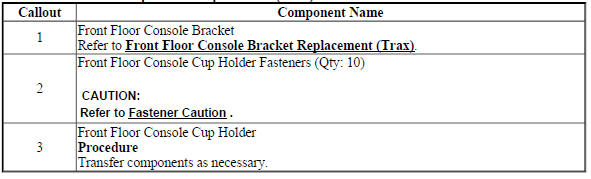

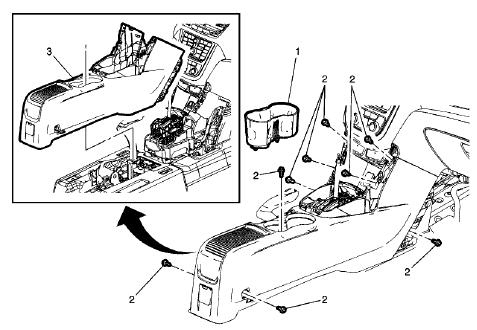

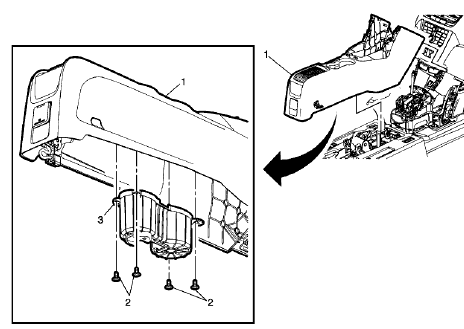

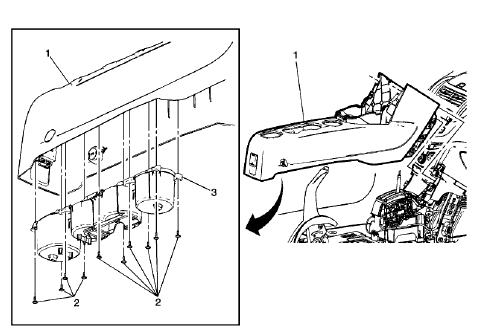

Fig. 124: Front Floor Console Cup Holder
Fig. 124: Front Floor Console Cup Holder

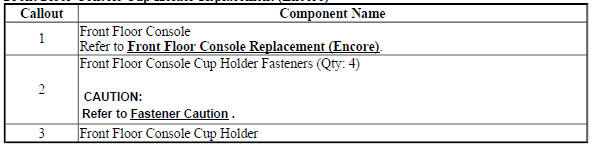

Front Floor Console Cup Holder Replacement (Encore)

Front Floor Console Cup Holder Replacement (Encore)

FRONT FLOOR CONSOLE CUP HOLDER REPLACEMENT (Encore)

Fig. 125: Front Floor Console Cup Holder
Fig. 125: Front Floor Console Cup Holder

Front Floor Console Cup Holder Replacement (Encore)

Front Floor Console Cup Holder Replacement (Encore)

FRONT FLOOR CONSOLE COMPARTMENT LINER REPLACEMENT (ENCORE)

Fig. 126: Front Floor Console Compartment Liner
Fig. 126: Front Floor Console Compartment Liner

Front Floor Console Compartment Liner Replacement (Encore)

Front Floor Console Compartment Liner Replacement (Encore)

FRONT FLOOR CONSOLE COMPARTMENT LINER REPLACEMENT (Encore)

Fig. 127: Front Floor Console Compartment Liner
Fig. 127: Front Floor Console Compartment Liner

Front Floor Console Compartment Liner Replacement (Encore)

Front Floor Console Compartment Liner Replacement (Encore)

FRONT FLOOR CONSOLE CENTER COMPARTMENT REPLACEMENT (ENCORE)

Fig. 128: Front Floor Console Center Compartment
Fig. 128: Front Floor Console Center Compartment

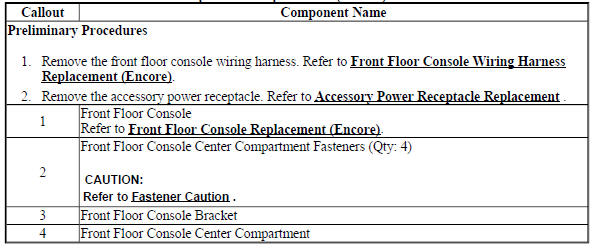

Front Floor Console Center Compartment Replacement (Encore)

Front Floor Console Center Compartment Replacement (Encore)

FRONT FLOOR CONSOLE EXTENSION REPLACEMENT - RIGHT SIDE

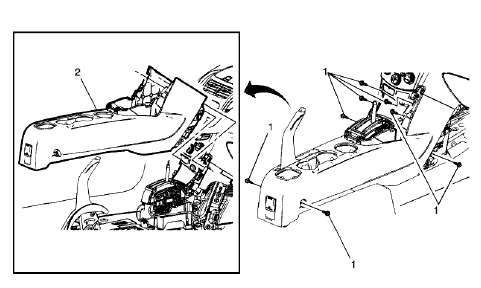

Fig. 129: Front Floor Console Extension - Right Side
Fig. 129: Front Floor Console Extension - Right Side

Front Floor Console Extension Replacement - Right Side

Front Floor Console Extension Replacement - Right Side

FRONT FLOOR CONSOLE EXTENSION REPLACEMENT - LEFT SIDE

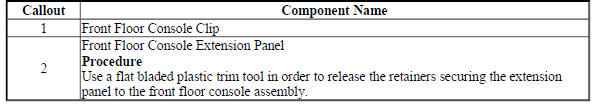

Fig. 130: Front Floor Console Extension - Left Side
Fig. 130: Front Floor Console Extension - Left Side

Front Floor Console Extension Replacement - Left Side

Front Floor Console Extension Replacement - Left Side

FRONT FLOOR CONSOLE PARKING BRAKE LEVER OPENING COVER REPLACEMENT (ENCORE)

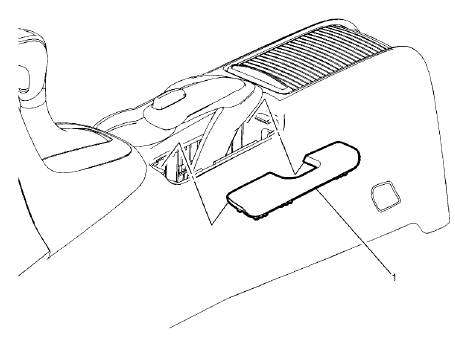

Fig. 131: Front Floor Console Parking Brake Lever Opening Cover
Fig. 131: Front Floor Console Parking Brake Lever Opening Cover

Front Floor Console Parking Brake Lever Opening Cover Replacement (Encore)

Front Floor Console Parking Brake Lever Opening Cover Replacement (Encore)

FRONT FLOOR CONSOLE REPLACEMENT (ENCORE)

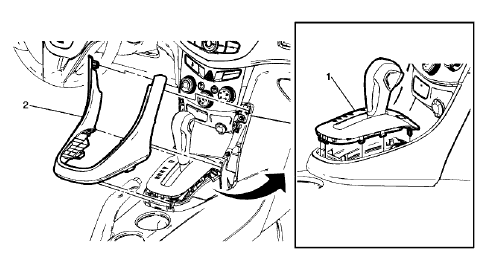

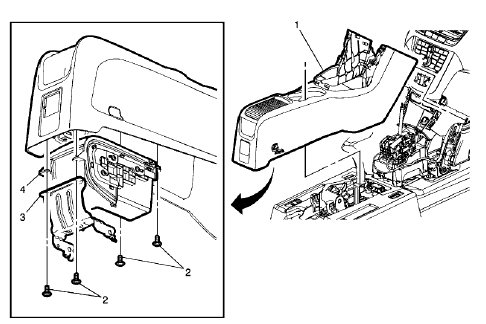

Fig. 132: Front Floor Console
Fig. 132: Front Floor Console

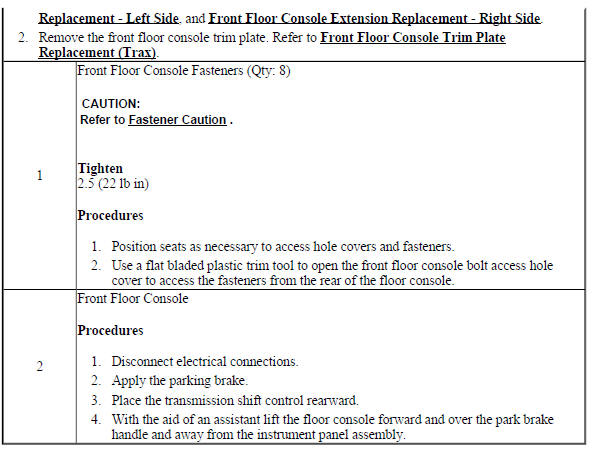

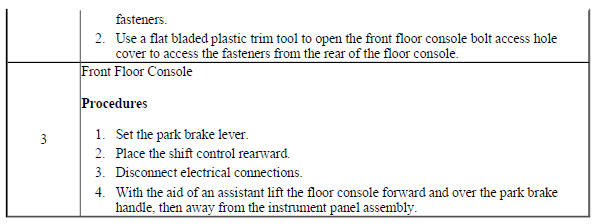

Front Floor Console Replacement (Encore)

Front Floor Console Replacement (Encore)

Front Floor Console Replacement (Encore)

FRONT FLOOR CONSOLE REPLACEMENT (Encore)

Fig. 133: Front Floor Console
Fig. 133: Front Floor Console

Front Floor Console Replacement (Encore)

Front Floor Console Replacement (Encore

Front Floor Console Replacement (Encore

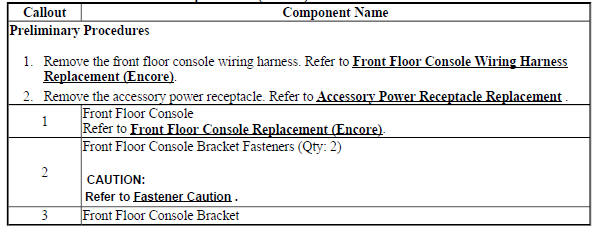

FRONT FLOOR CONSOLE BRACKET REPLACEMENT (ENCORE)

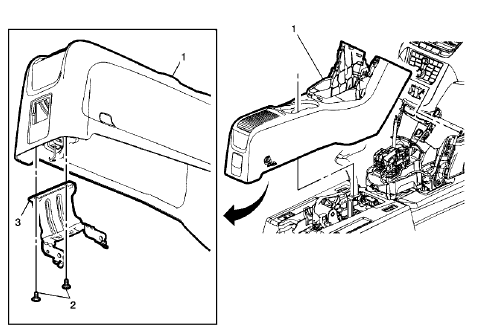

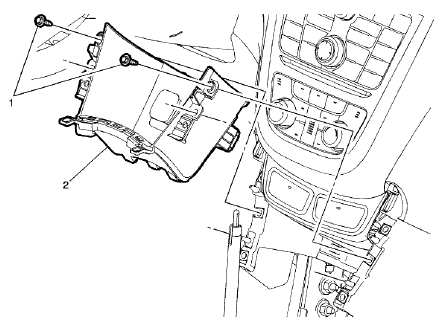

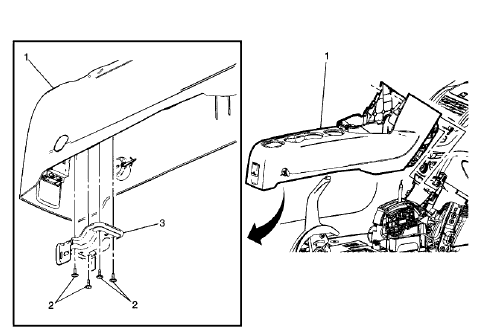

Fig. 134: Front Floor Console Bracket
Fig. 134: Front Floor Console Bracket

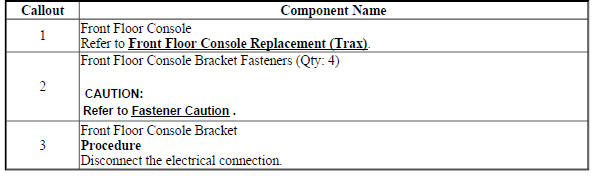

Front Floor Console Bracket Replacement (Encore)

Front Floor Console Bracket Replacement (Encore)

FRONT FLOOR CONSOLE BRACKET REPLACEMENT (Encore)

Fig. 135: Front Floor Console Bracket
Fig. 135: Front Floor Console Bracket

Front Floor Console Bracket Replacement (Encore)

Front Floor Console Bracket Replacement (Encore)

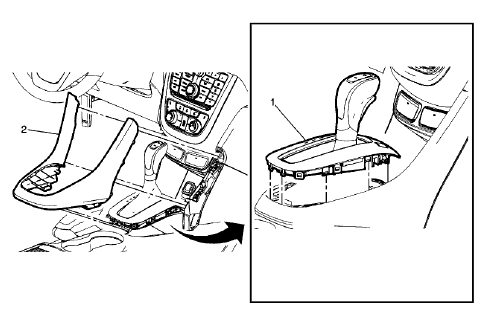

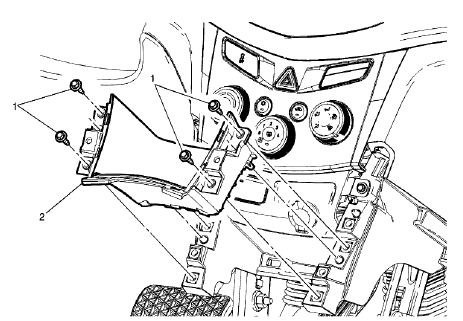

FRONT FLOOR CONSOLE TRIM PLATE REPLACEMENT (ENCORE)

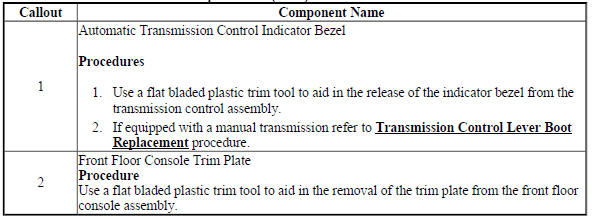

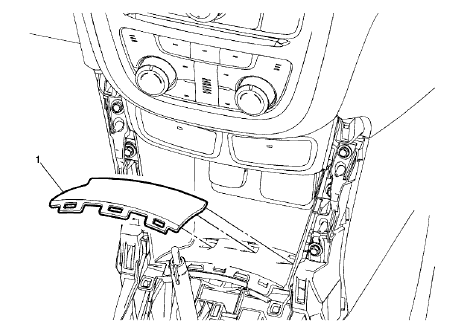

Fig. 136: Front Floor Console Trim Plate
Fig. 136: Front Floor Console Trim Plate

Front Floor Console Trim Plate Replacement (Encore)

Front Floor Console Trim Plate Replacement (Encore)

FRONT FLOOR CONSOLE TRIM PLATE REPLACEMENT (Encore)

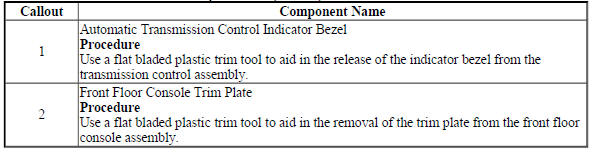

Fig. 137: Front Floor Console Trim Plate
Fig. 137: Front Floor Console Trim Plate

Front Floor Console Trim Plate Replacement (Encore)

Front Floor Console Trim Plate Replacement (Encore)

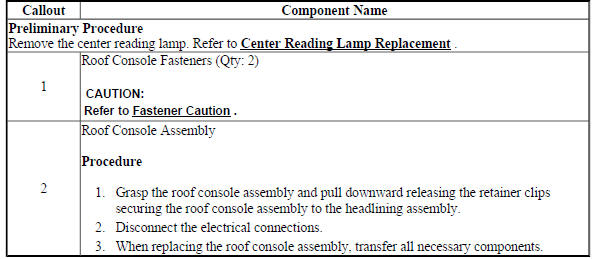

ROOF CONSOLE REPLACEMENT

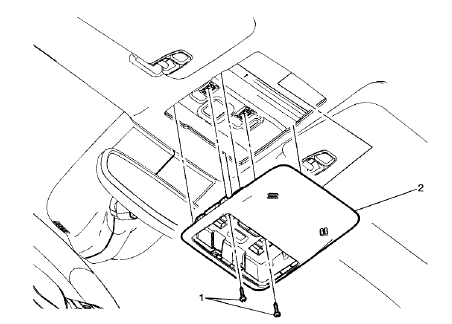

Fig. 138: Roof Console Assembly
Fig. 138: Roof Console Assembly

Roof Console Replacement

Roof Console Replacement
