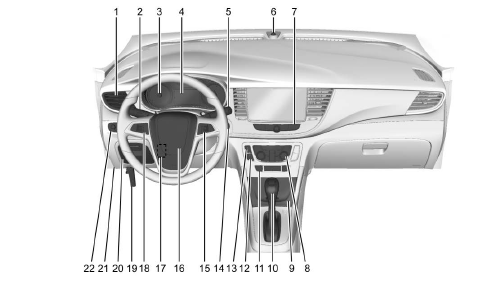

Instrument Panel Overview

  1. Air Vents
  2. Turn Signal Lever. See Turn and Lane-Change Signals. Headlamp High/Low-Beam Changer
  3. Instrument Cluster
  4. Driver Information Center (DIC) Display. See Driver Information Center (DIC)
  5. Windshield Wiper/Washer. Rear Window Wiper/Washer
  6. Light Sensor. See Automatic Headlamp System
  7. Infotainment
  8. Climate Control Systems or Dual Automatic Climate Control System.  Heated Steering Wheel
  9. Instrument Panel Storage
  10. Shift Lever. See Automatic Transmission
  11. Traction Control/Electronic Stability Control. Hazard Warning Flashers. Passenger Airbag Status Indicator. See Passenger Sensing System
  12. Park Assist
  13. Lane Departure Warning (LDW)
  14. Ignition Positions
  15. Steering Wheel Controls
  16. Horn
  17. Steering Wheel Adjustment
  18. Cruise Control. Forward Collision Alert (FCA) System
  19. Hood Release. See Hood
  20. Instrument Panel Storage
  21. Data Link Connector (DLC) (Out of View). See Malfunction Indicator Lamp (Check Engine Light - Capless) or Malfunction Indicator Lamp (Check Engine Light - Capped)
  22. Exterior Lamp Controls. Instrument Panel Illumination Control. Front Fog Lamps
