Buick Encore: Maintenance and Lubrication
SPECIFICATIONS

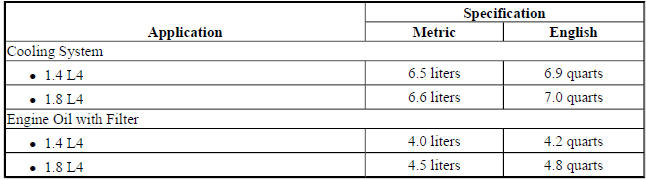

APPROXIMATE FLUID CAPACITIES
The following approximate capacities are given in English and metric conversions. All capacities are approximate. When adding, be sure to fill to the approximate level as recommended in this manual. Recheck fluid level after filling.
.jpg)

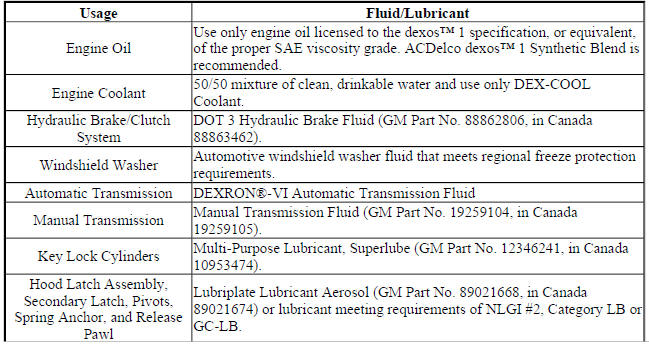

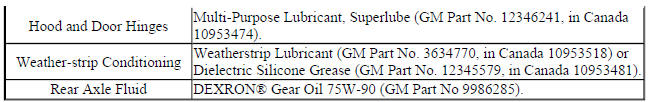

FLUID AND LUBRICANT RECOMMENDATIONS
Fluid and Lubricant Recommendations
.jpg)
.jpg)
MAINTENANCE ITEMS
The Normal Maintenance Replacement Parts information will only be found in the Owner's Manual. Refer to the Maintenance Schedule subsection of the Owner's Manual.
You may be able to use the search information function using the words Replacement Parts
MAINTENANCE
MAINTENANCE SCHEDULE
The Maintenance Schedule information will only be found in the Owner's Manual.
Refer to the Maintenance Schedule subsection of the Owner's Manual, or you may be able to use the search information function using the words Scheduled Maintenance.
