Buick Encore: Power steering control module scan tool information

Buick Encore 2012-2019 Service Manual / General Information & Maintenance / Vehicle Diagnostic Information - Diagnostic Information and Procedures / Power steering control module scan tool information

The power steering control module scan tool data parameters list contains all power steering related parameters that are available on the scan tool. The list is arranged in alphabetical order. A given parameter may appear in any one of the data lists.

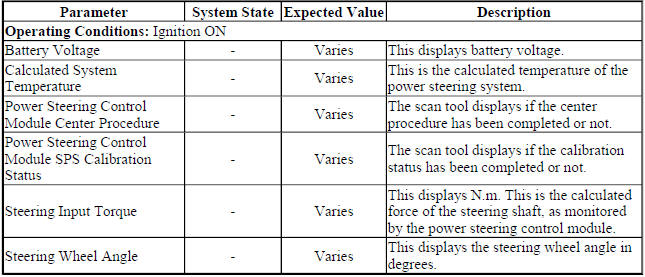

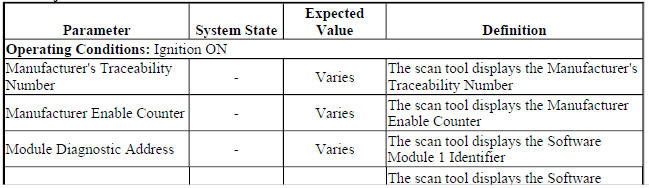

Power Steering Control Module Scan Tool Data Parameters

Power Steering Control Module Scan Tool Data Parameters

RADIO SCAN TOOL INFORMATION

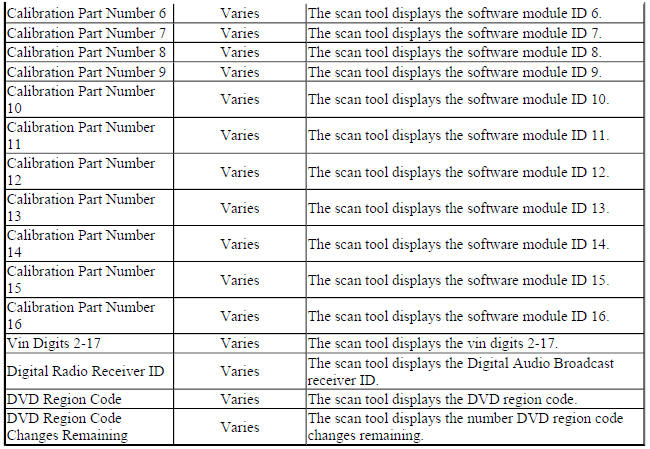

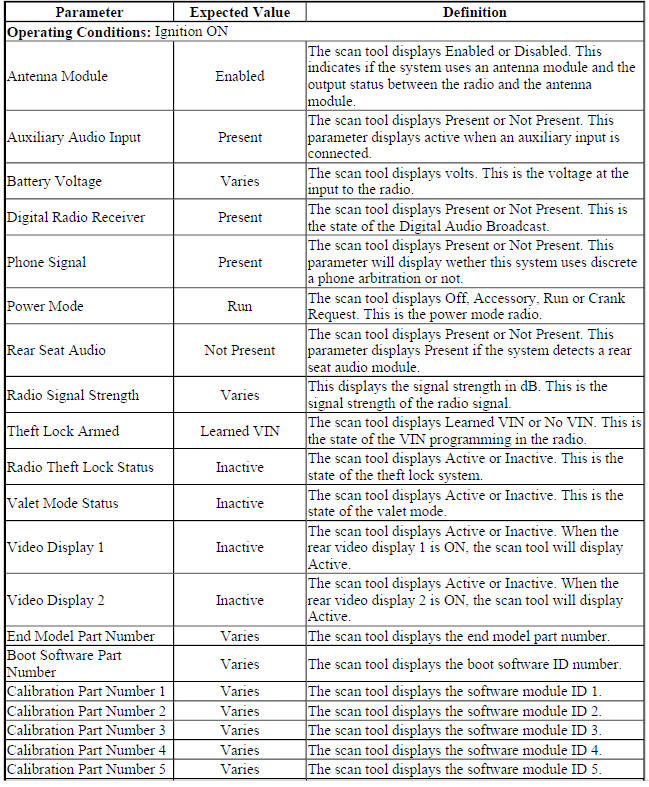

Radio Scan Tool Data Parameters

Radio Scan Tool Data Parameters

Radio Scan Tool Data Parameters

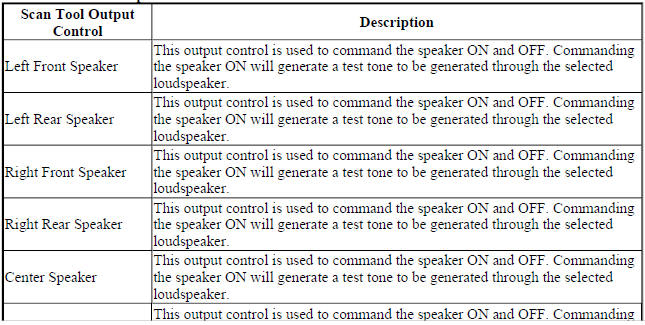

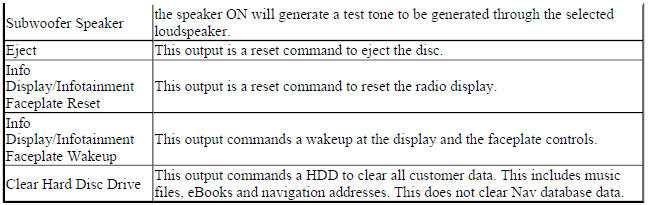

Radio Scan Tool Output Controls

Radio Scan Tool Output Controls

Radio Scan Tool Output Controls

REAR DIFFERENTIAL CLUTCH CONTROL MODULE SCAN TOOL INFORMATION

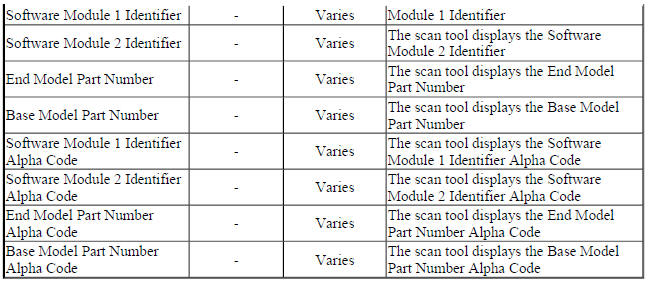

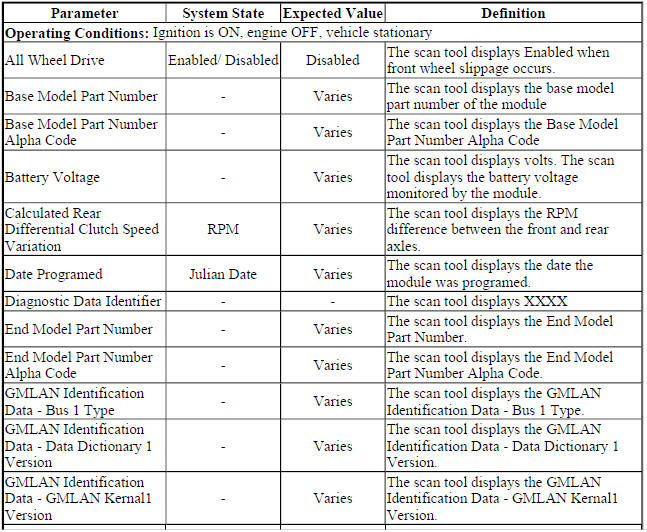

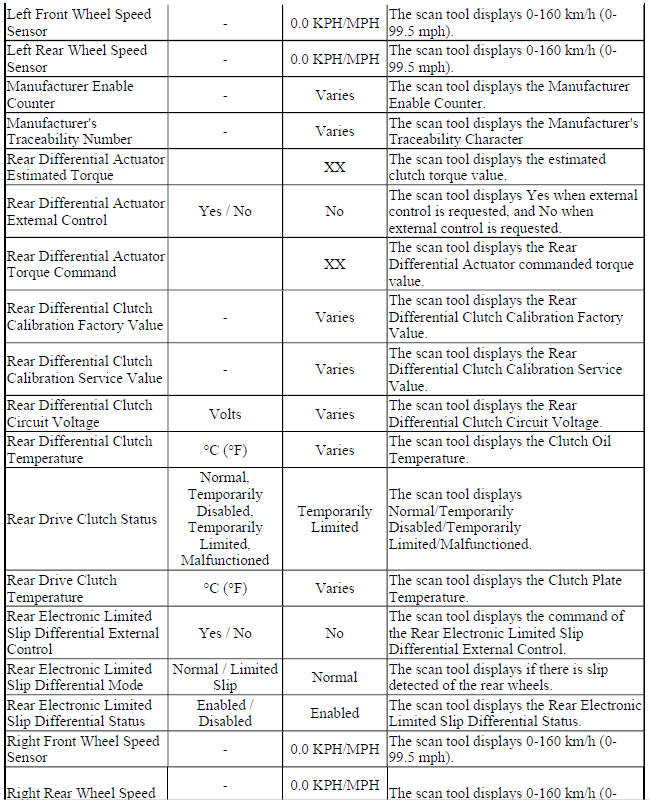

Rear Differential Clutch Control Module Scan Tool Data Parameters

Rear Differential Clutch Control Module Scan Tool Data Parameters

Rear Differential Clutch Control Module Scan Tool Data Parameters

Rear Differential Clutch Control Module Scan Tool Data Parameters

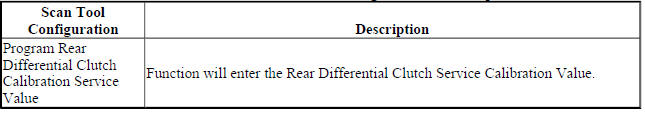

Rear Differential Clutch Control Module Scan Tool Configuration and Setup

Rear Differential Clutch Control Module Scan Tool Configuration and Setup

SIDE OBJECT SENSING ALERT MODULE SCAN TOOL INFORMATION

Side Object Detection Scan Tool Parameters

Side Object Detection Scan Tool Parameters

Side Object Detection Scan Tool Parameters

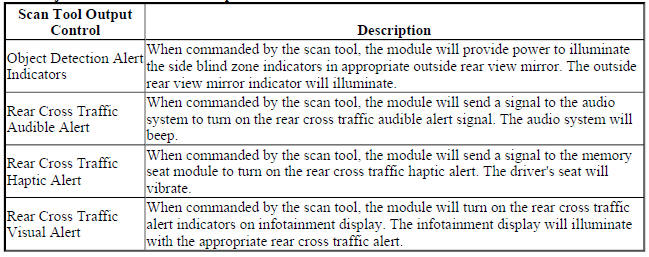

Side Object Detection Module Output Controls

Side Object Detection Module Output Controls

TELEMATICS COMMUNICATION INTERFACE CONTROL MODULE SCAN TOOL INFORMATION

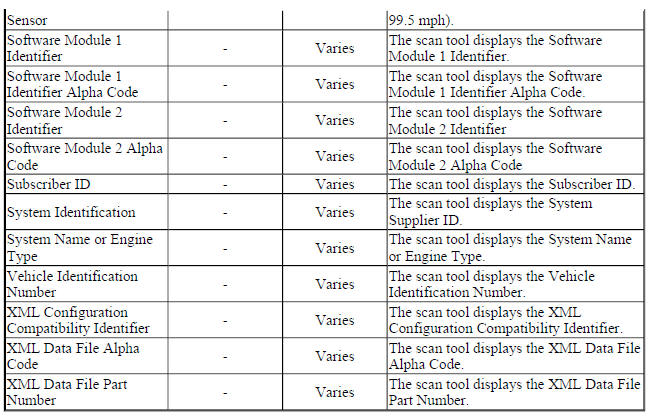

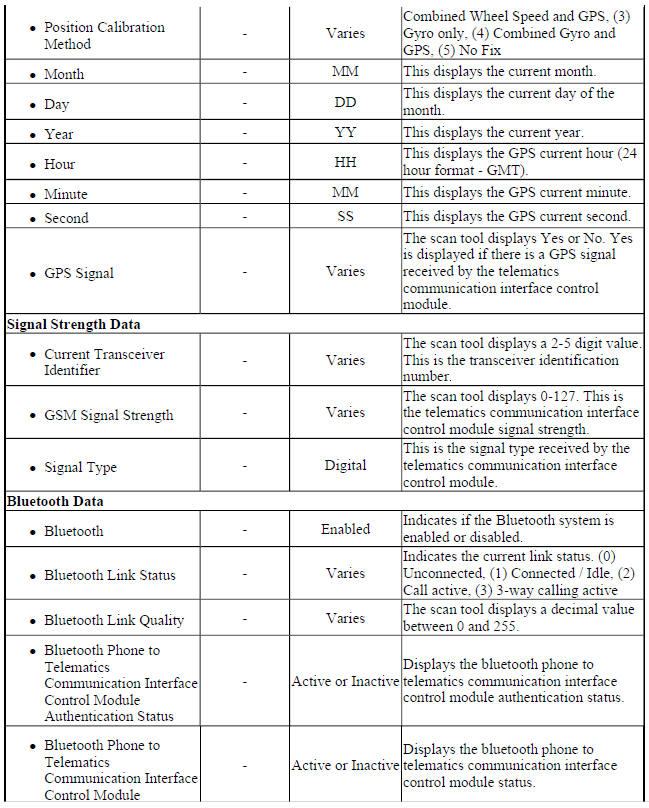

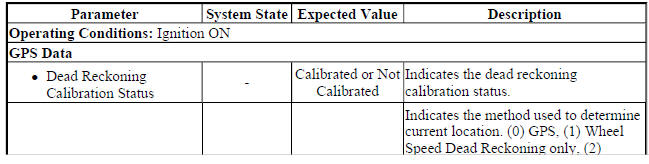

Telematics Communication Interface Control Module Scan Tool Data Parameters

Telematics Communication Interface Control Module Scan Tool Data Parameters

Telematics Communication Interface Control Module Scan Tool Data Parameters

Telematics Communication Interface Control Module Scan Tool Data Parameters

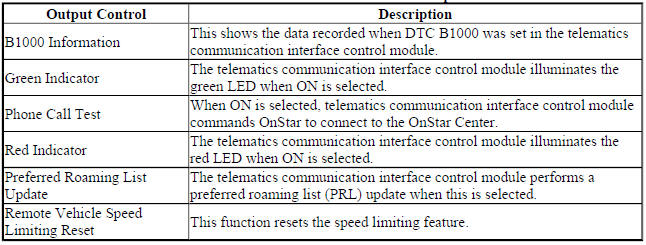

Telematics Communication Interface Control Module Scan Tool Output Controls

Telematics Communication Interface Control Module Scan Tool Output Controls

TRANSMISSION CONTROL MODULE SCAN TOOL INFORMATION (6T30/6T40/6T45/6T50)

The Transmission Control Module Scan Tool Data List contains all transmission related parameters that are available on the scan tool. The list is arranged in alphabetical order. A given parameter may appear in any one of the data lists, and in some cases may appear more than once, or in more than one data list in order to group certain related parameters together.

The values below represent a typical display recorded from a properly functioning system.

NOTE: Do not use a scan tool that displays faulty data. Report the condition to the scan tool manufacturer. The use of a faulty scan tool can result in misdiagnosis and the unnecessary replacement of components.

Only the parameters listed below are used/referenced in this manual for diagnosis. If a scan tool displays other parameters, those values are not recommended by General Motors for use in diagnosis.

If all values are within the expected range described below, refer to Symptoms - Automatic Transmission for diagnosis.

The scan tool values from a properly functioning transmission may be used for comparison with the transmission you are diagnosing. The values below represent a typical display recorded from a properly functioning system.

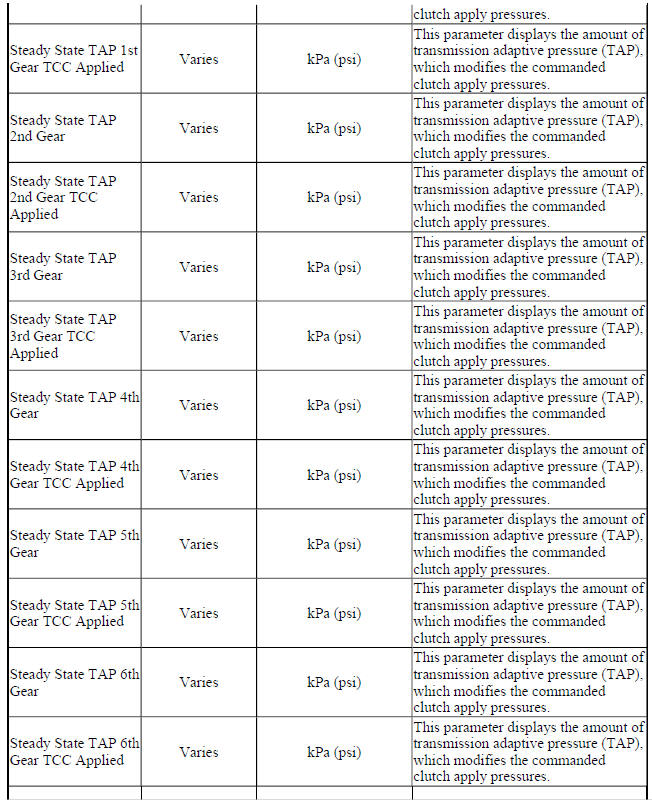

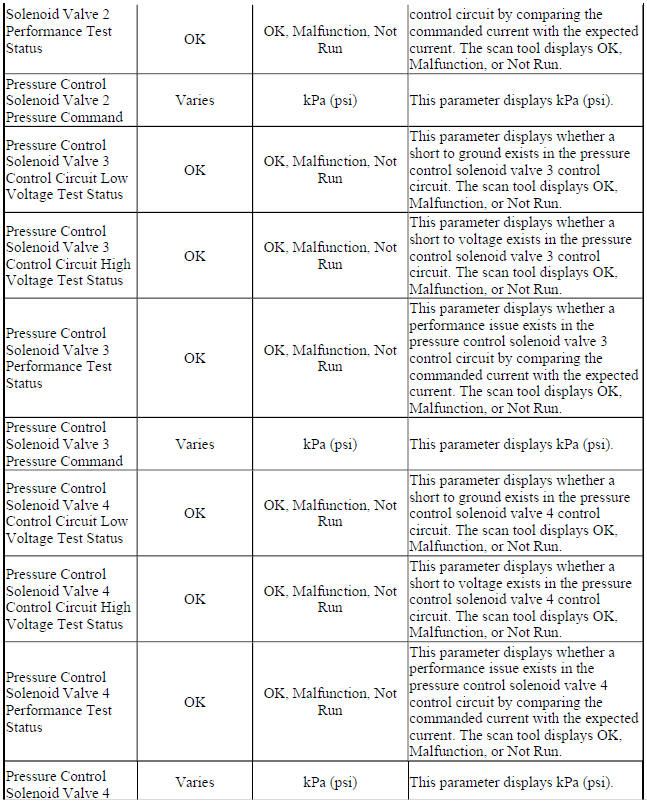

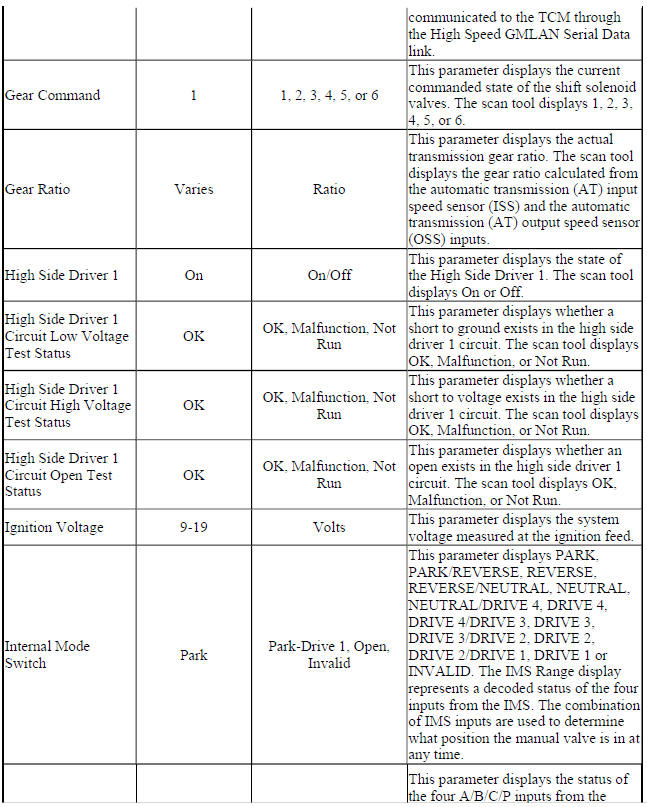

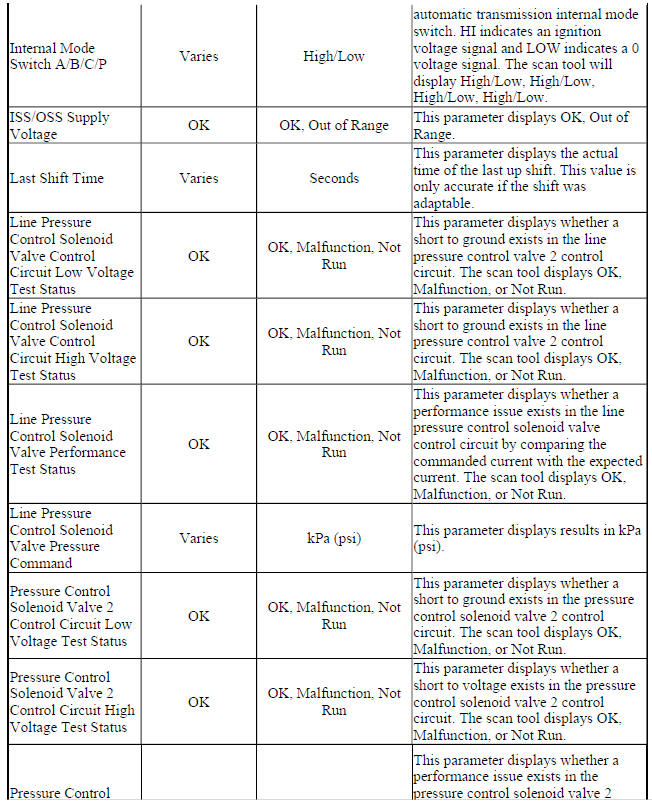

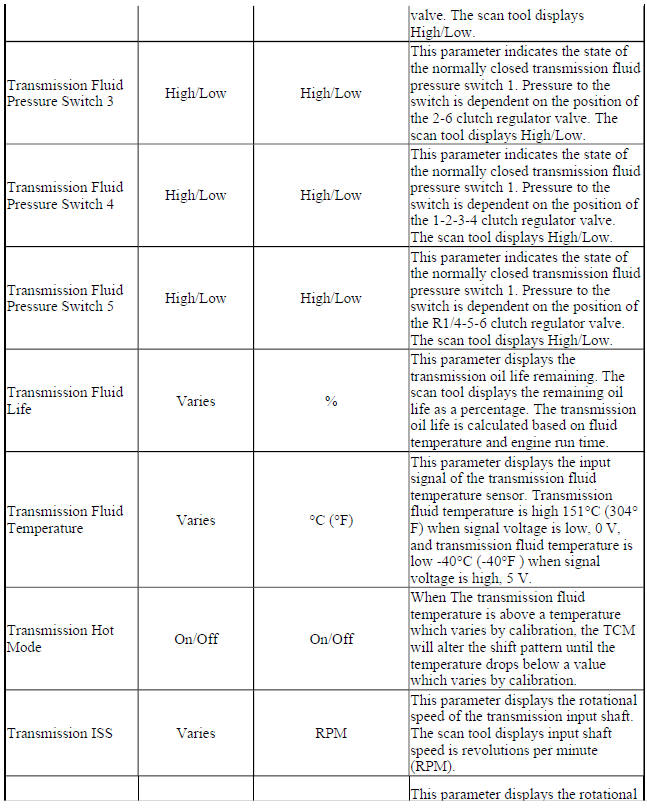

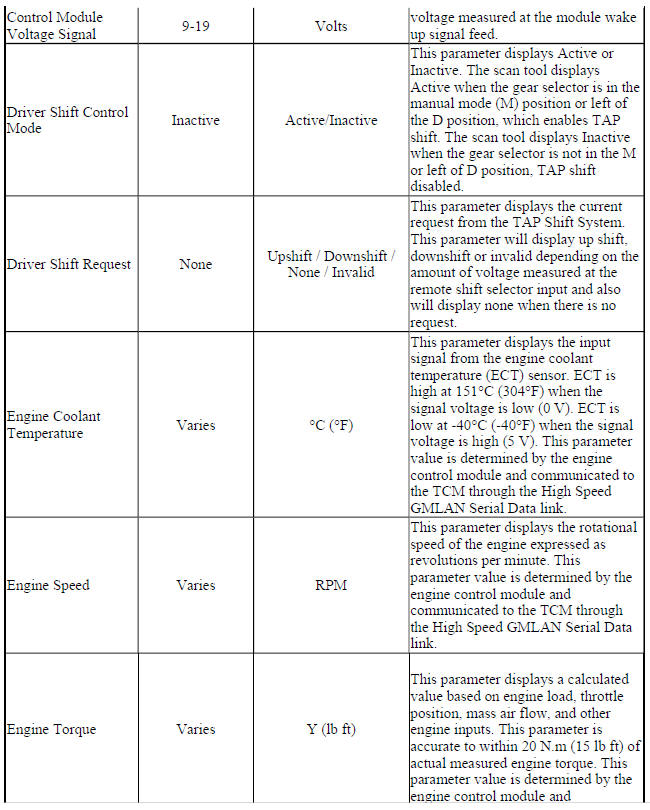

Scan Tool Data Parameters

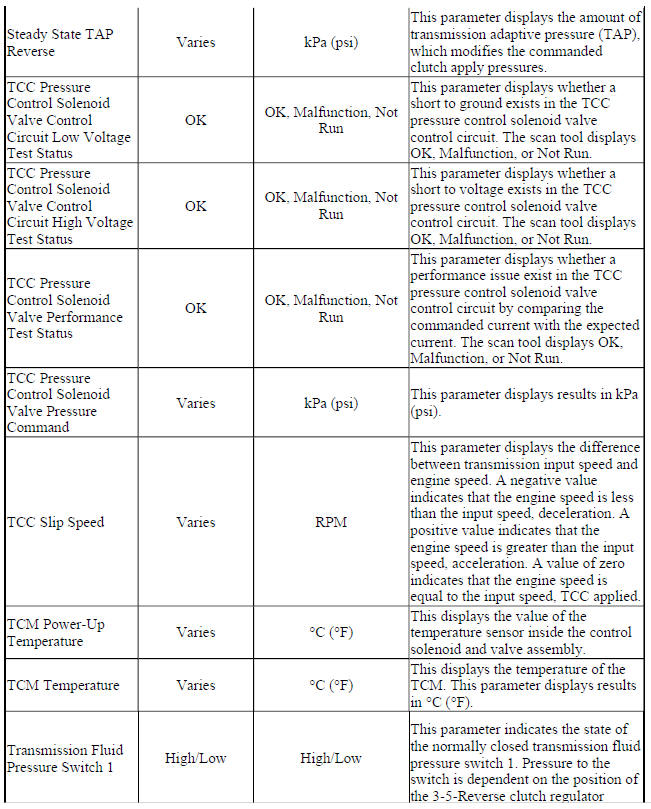

Scan Tool Data Parameters

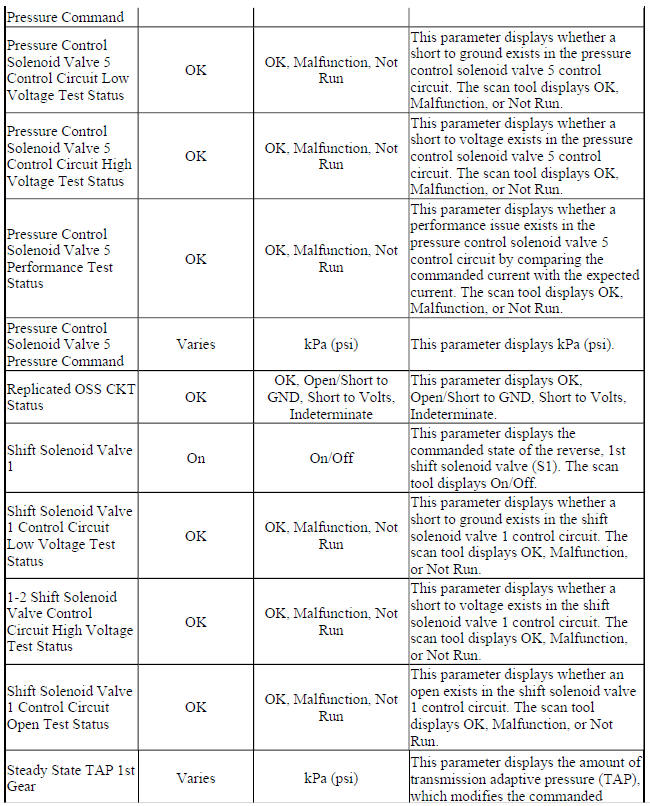

Scan Tool Data Parameters

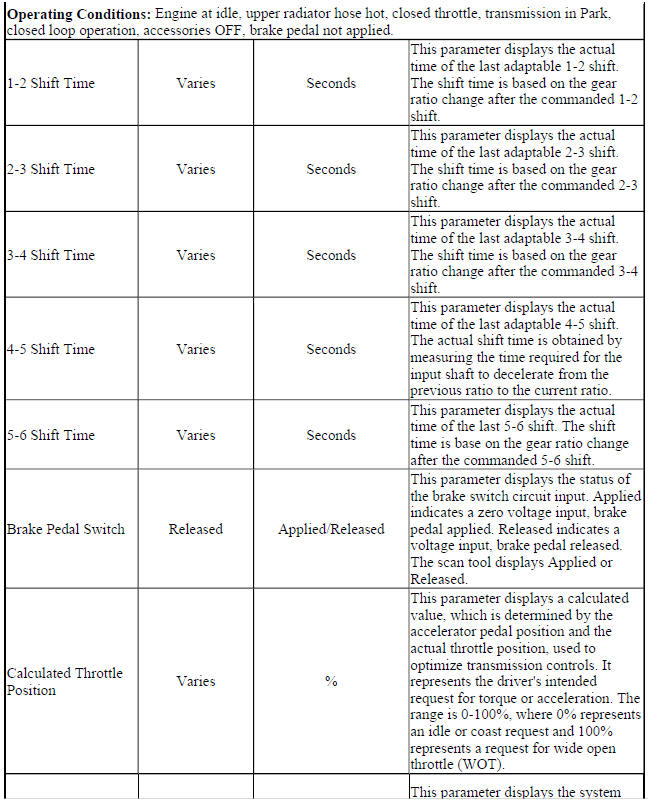

Scan Tool Data Parameters

Scan Tool Data Parameters

Scan Tool Data Parameters

Scan Tool Data Parameters

Scan Tool Data Parameters

Scan Tool Data Parameters

Scan Tool Data Parameters

Scan Tool Data Parameters

Scan Tool Data Parameters

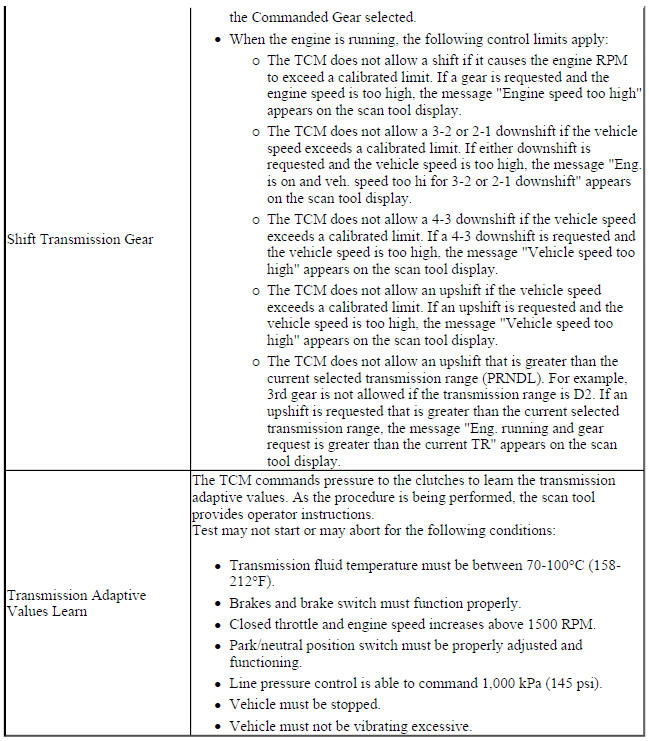

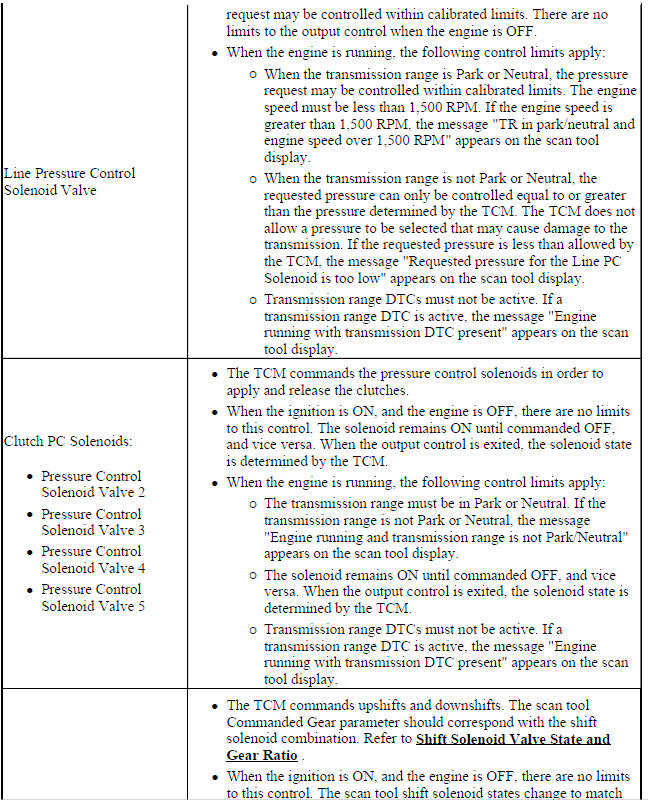

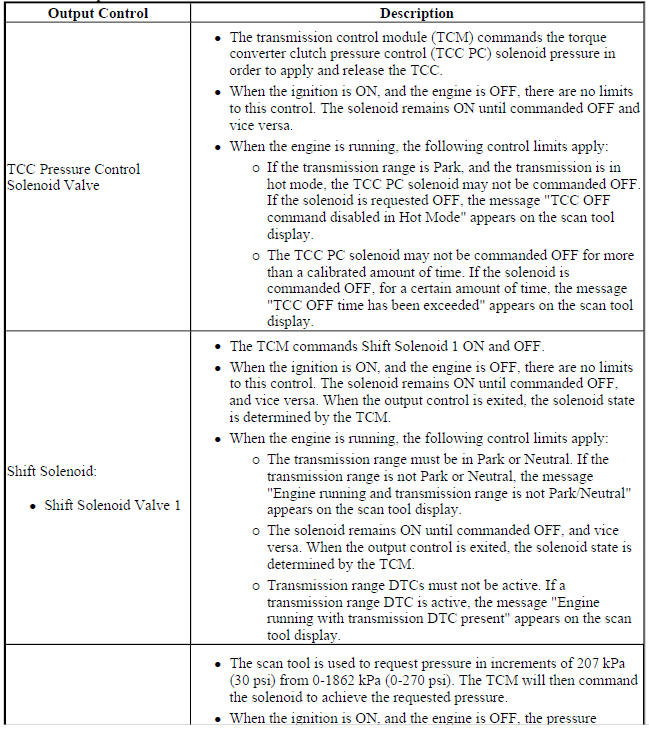

Scan Tool Output Controls

Scan Tool Output Controls

Scan Tool Output Controls

Scan Tool Output Controls
