Buick Encore: Wipers and washers - Repair instructions

Buick Encore 2012-2019 Service Manual / Accessories & Equipment / Wipers and Washers / Wipers and washers - Repair instructions

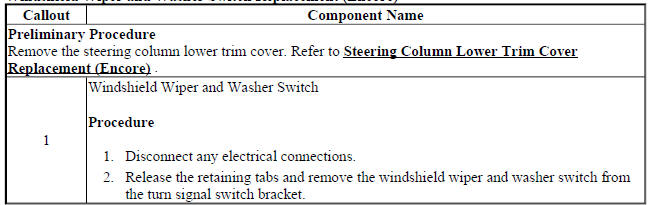

WINDSHIELD WIPER AND WASHER SWITCH REPLACEMENT (ENCORE)

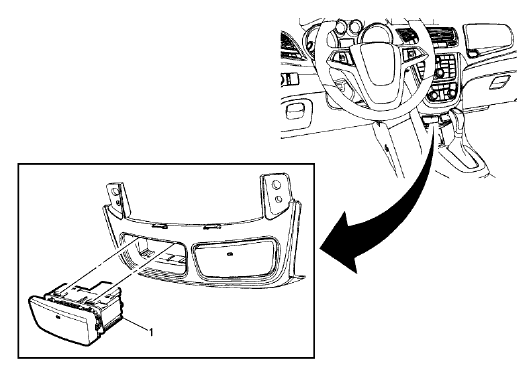

Fig. 8: Windshield Wiper And Washer Switch
Fig. 8: Windshield Wiper And Washer Switch

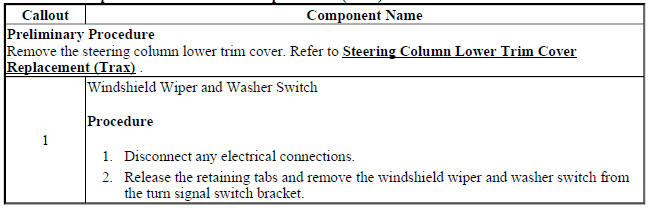

Windshield Wiper and Washer Switch Replacement (Encore)

Windshield Wiper and Washer Switch Replacement (Encore)

WINDSHIELD WIPER AND WASHER SWITCH REPLACEMENT (Encore)

Fig. 9: Windshield Wiper And Washer Switch
Fig. 9: Windshield Wiper And Washer Switch

Windshield Wiper and Washer Switch Replacement (Encore)

Windshield Wiper and Washer Switch Replacement (Encore)

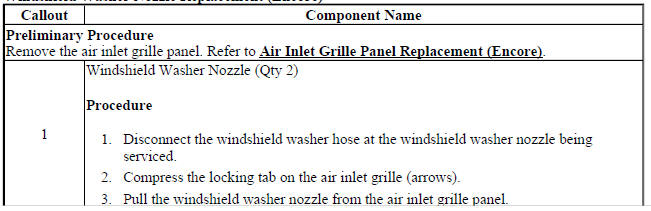

WINDSHIELD WASHER NOZZLE REPLACEMENT (Encore)

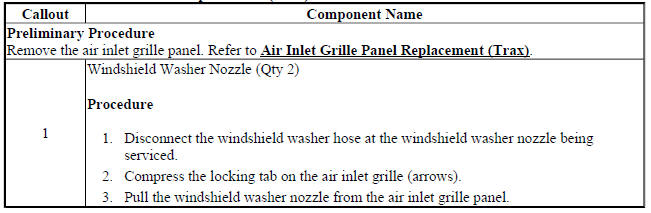

Fig. 10: Windshield Washer Nozzle
Fig. 10: Windshield Washer Nozzle

Windshield Washer Nozzle Replacement (Encore)

Windshield Washer Nozzle Replacement (Encore)

WINDSHIELD WASHER NOZZLE REPLACEMENT (ENCORE)

Fig. 11: Windshield Washer Nozzle
Fig. 11: Windshield Washer Nozzle

Windshield Washer Nozzle Replacement (Encore)

Windshield Washer Nozzle Replacement (Encore)

WINDSHIELD WASHER NOZZLE ADJUSTMENT

Special Tools

BO-49380 Adjusting Tool

For equivalent regional tools, refer to Special Tools.

Fig. 12: Windshield Washer Nozzle
Fig. 12: Windshield Washer Nozzle

NOTE: All adjustments must be completed with the hood assembly in the FULL closed position.

  • A= 638 mm (25.118 in)
  • B = 550 mm (21.653 in)
  • C = 630 mm (24.803 in)
  • X = 76 mm (2.992 in)
  • Y = 420 mm (16.535 in)
  • Z = 768 mm (30.236 in)

Adjust the windshield washer nozzle using the BO-49380 adjuster.

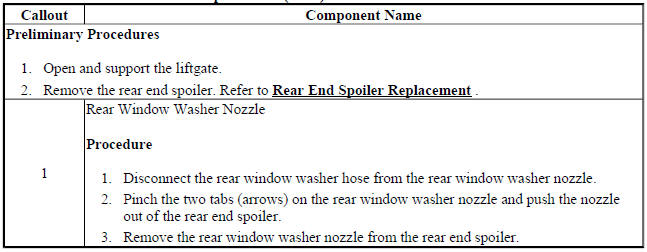

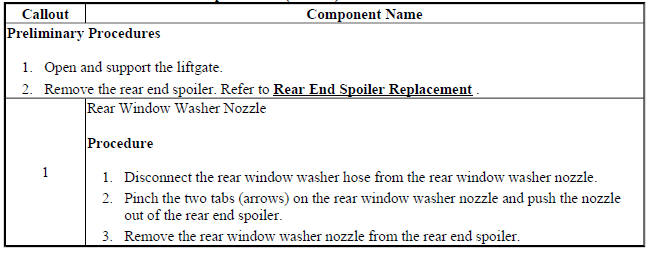

REAR WINDOW WASHER NOZZLE REPLACEMENT (Encore)

Fig. 13: Rear Window Washer Nozzle
Fig. 13: Rear Window Washer Nozzle

Rear Window Washer Nozzle Replacement (Encore)

Rear Window Washer Nozzle Replacement (Encore)

REAR WINDOW WASHER NOZZLE REPLACEMENT (ENCORE)

Fig. 14: Rear Window Washer Nozzle
Fig. 14: Rear Window Washer Nozzle

Rear Window Washer Nozzle Replacement (Encore)

Rear Window Washer Nozzle Replacement (Encore)

WINDSHIELD WASHER PUMP HOSE REPLACEMENT (Encore)

Fig. 15: Windshield Washer Pump Hose
Fig. 15: Windshield Washer Pump Hose

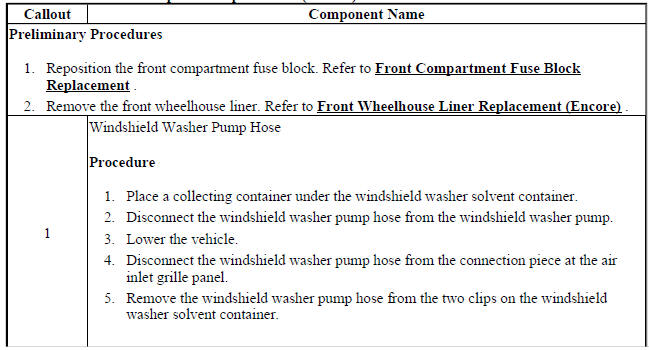

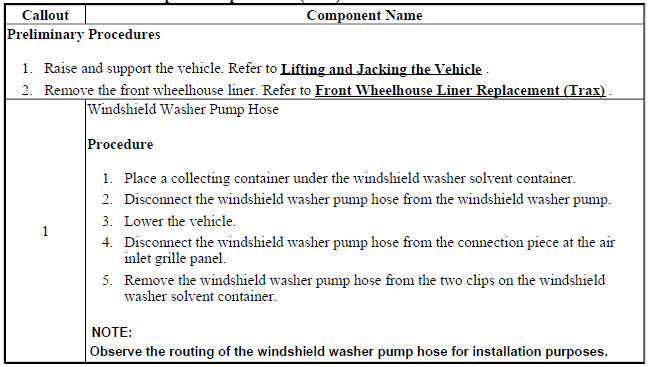

Windshield Washer Pump Hose Replacement (Encore)

Windshield Washer Pump Hose Replacement (Encore)

WINDSHIELD WASHER PUMP HOSE REPLACEMENT (ENCORE)

Fig. 16: NO CONTENT
Fig. 16: NO CONTENT

Windshield Washer Pump Hose Replacement (Encore)

Windshield Washer Pump Hose Replacement (Encore)

Windshield Washer Pump Hose Replacement (Encore)

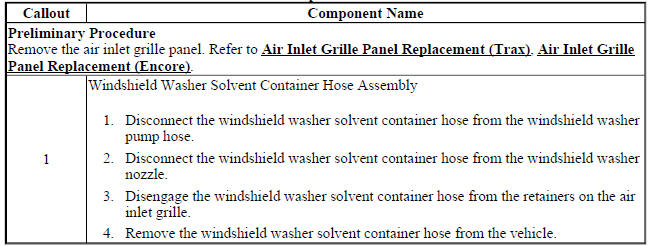

Fig. 17: Windshield Washer Solvent Container Hose
Fig. 17: Windshield Washer Solvent Container Hose

Windshield Washer Solvent Container Hose Replacement

Windshield Washer Solvent Container Hose Replacement

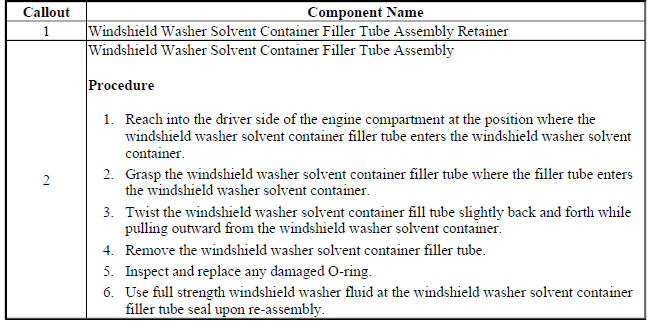

WINDSHIELD WASHER SOLVENT CONTAINER FILLER TUBE REPLACEMENT

Fig. 18: Windshield Washer Solvent Container Filler Tube
Fig. 18: Windshield Washer Solvent Container Filler Tube

Windshield Washer Solvent Container Filler Tube Replacement

Windshield Washer Solvent Container Filler Tube Replacement

WINDSHIELD WASHER SOLVENT CONTAINER REPLACEMENT

Fig. 19: Windshield Washer Solvent Container
Fig. 19: Windshield Washer Solvent Container

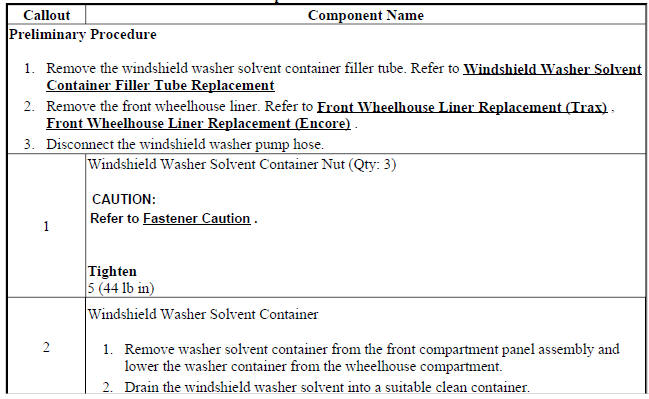

Windshield Washer Solvent Container Replacement

Windshield Washer Solvent Container Replacement

Windshield Washer Solvent Container Replacement

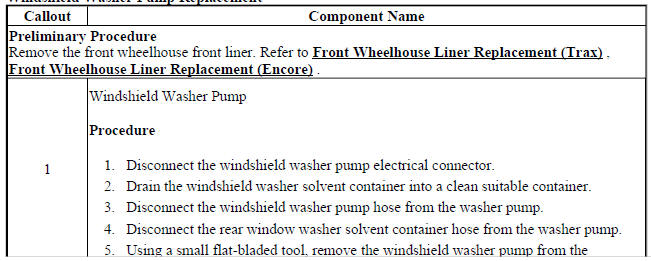

WINDSHIELD WASHER PUMP REPLACEMENT

Fig. 20: Windshield Washer Pump
Fig. 20: Windshield Washer Pump

Windshield Washer Pump Replacement

Windshield Washer Pump Replacement

Windshield Washer Pump Replacement

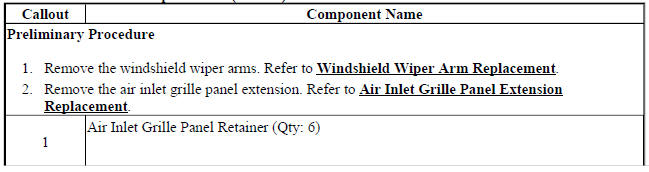

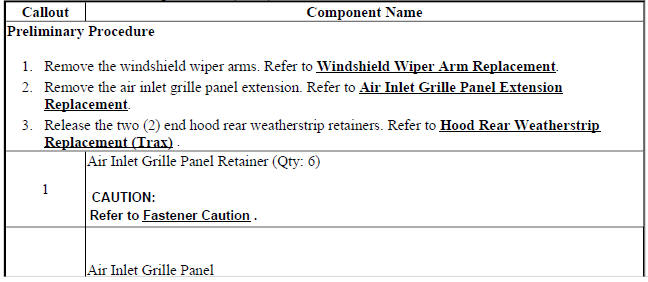

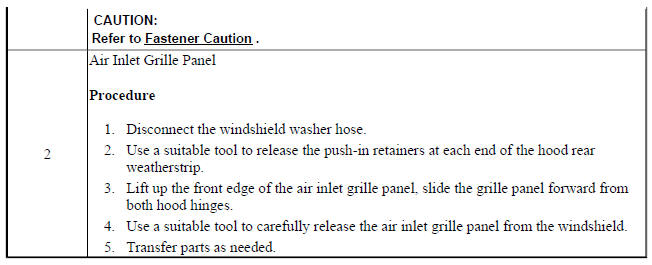

AIR INLET GRILLE PANEL REPLACEMENT (Encore)

Fig. 21: Air Inlet Grille Panel
Fig. 21: Air Inlet Grille Panel

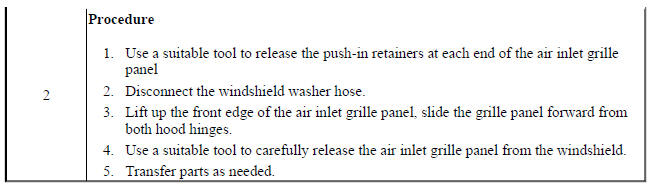

Air Inlet Grille Panel Replacement (Encore)

Air Inlet Grille Panel Replacement (Encore)

Air Inlet Grille Panel Replacement (Encore)

AIR INLET GRILLE PANEL REPLACEMENT (ENCORE)

Fig. 22: Air Inlet Grille Panel
Fig. 22: Air Inlet Grille Panel

Air Inlet Grille Panel Replacement (Encore)

Air Inlet Grille Panel Replacement (Encore)

Air Inlet Grille Panel Replacement (Encore)

AIR INLET GRILLE PANEL EXTENSION REPLACEMENT

Fig. 23: Air Inlet Grille Panel Extension
Fig. 23: Air Inlet Grille Panel Extension

Air Inlet Grille Panel Extension Replacement

Air Inlet Grille Panel Extension Replacement

Air Inlet Grille Panel Extension Replacement

AIR INLET GRILLE PANEL AIR DEFLECTOR OPENING COVER REPLACEMENT

Fig. 24: Air Inlet Grille Panel Air Deflector Opening Cover
Fig. 24: Air Inlet Grille Panel Air Deflector Opening Cover

Air Inlet Grille Panel Air Deflector Opening Cover Replacement

Air Inlet Grille Panel Air Deflector Opening Cover Replacement

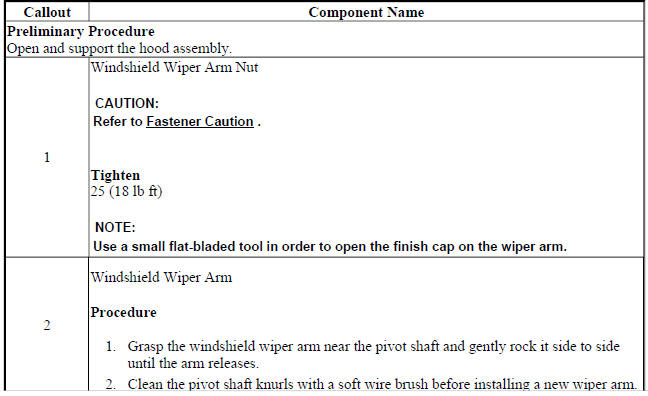

WINDSHIELD WIPER ARM REPLACEMENT

Fig. 25: Windshield Wiper Arm
Fig. 25: Windshield Wiper Arm

Windshield Wiper Arm Replacement

Windshield Wiper Arm Replacement

Windshield Wiper Arm Replacement

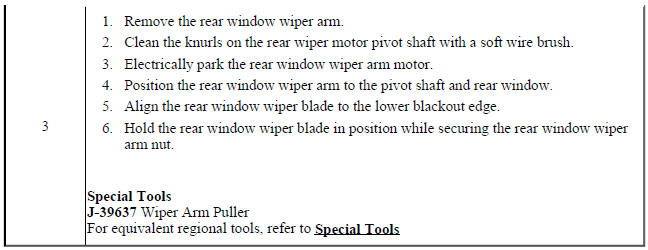

REAR WINDOW WIPER ARM REPLACEMENT

Fig. 26: Rear Window Wiper Arm
Fig. 26: Rear Window Wiper Arm

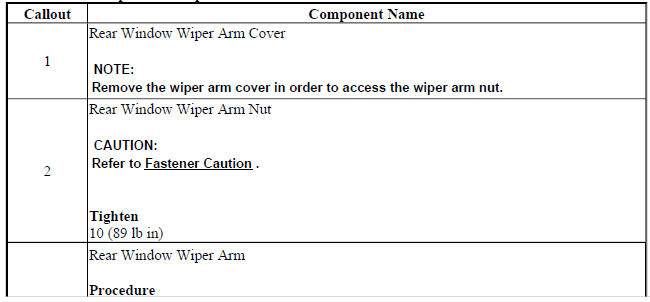

Rear Window Wiper Arm Replacement

Rear Window Wiper Arm Replacement

Rear Window Wiper Arm Replacement

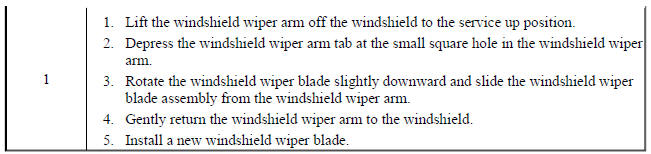

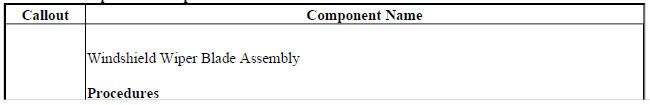

WINDSHIELD WIPER BLADE REPLACEMENT

Fig. 27: Windshield Wiper Blade
Fig. 27: Windshield Wiper Blade

Windshield Wiper Blade Replacement

Windshield Wiper Blade Replacement

Windshield Wiper Blade Replacement

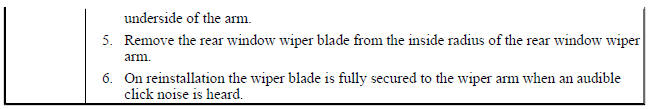

REAR WINDOW WIPER BLADE REPLACEMENT

Fig. 28: Rear Window Wiper Blade
Fig. 28: Rear Window Wiper Blade

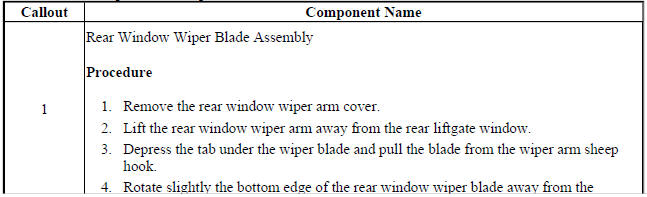

Rear Window Wiper Blade Replacement

Rear Window Wiper Blade Replacement

Rear Window Wiper Blade Replacement

WINDSHIELD WIPER MOTOR REPLACEMENT

Fig. 29: Windshield Wiper Motor
Fig. 29: Windshield Wiper Motor

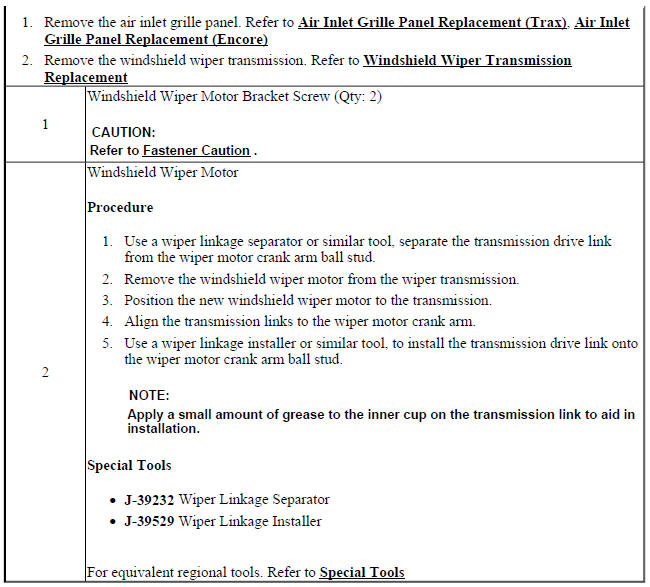

Windshield Wiper Motor Replacement

Windshield Wiper Motor Replacement

Windshield Wiper Motor Replacement

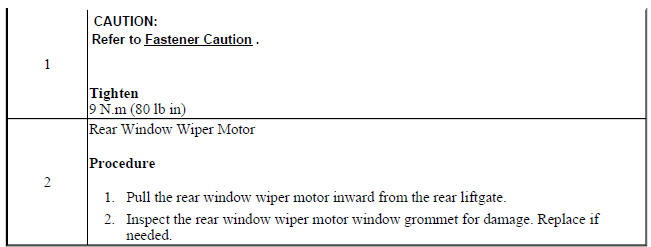

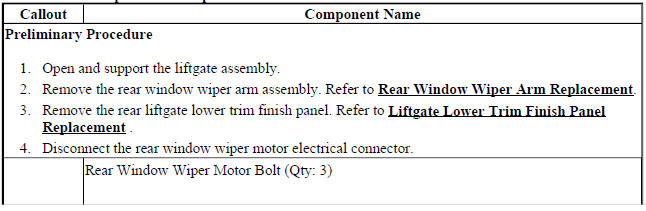

REAR WINDOW WIPER MOTOR REPLACEMENT

Fig. 30: Rear Window Wiper Motor
Fig. 30: Rear Window Wiper Motor

Rear Window Wiper Motor Replacement

Rear Window Wiper Motor Replacement

Rear Window Wiper Motor Replacement

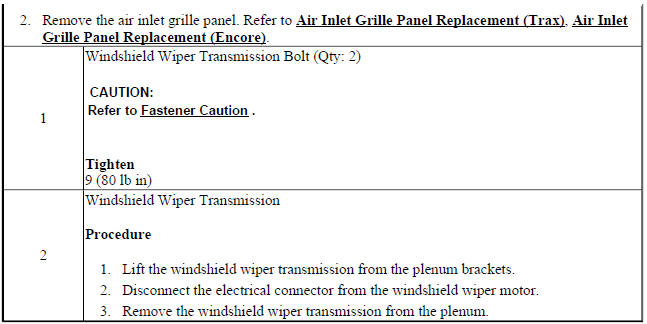

WINDSHIELD WIPER TRANSMISSION REPLACEMENT

Fig. 31: Windshield Wiper Transmission
Fig. 31: Windshield Wiper Transmission

Windshield Wiper Transmission Replacement

Windshield Wiper Transmission Replacement

Windshield Wiper Transmission Replacement

WINDSHIELD OUTSIDE MOISTURE SENSOR COVER REPLACEMENT (ENCORE)

Fig. 32: Windshield Outside Moisture Sensor Cover
Fig. 32: Windshield Outside Moisture Sensor Cover

Windshield Outside Moisture Sensor Cover Replacement (Encore)

Windshield Outside Moisture Sensor Cover Replacement (Encore)

WINDSHIELD OUTSIDE MOISTURE SENSOR COVER REPLACEMENT (Encore)

Fig. 33: Windshield Outside Moisture Sensor Cover
Fig. 33: Windshield Outside Moisture Sensor Cover

Windshield Outside Moisture Sensor Cover Replacement (Encore)

Windshield Outside Moisture Sensor Cover Replacement (Encore)

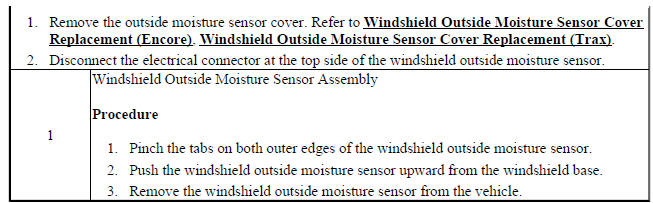

WINDSHIELD OUTSIDE MOISTURE SENSOR REPLACEMENT

Fig. 34: Windshield Outside Moisture Sensor
Fig. 34: Windshield Outside Moisture Sensor

Windshield Outside Moisture Sensor Replacement

Windshield Outside Moisture Sensor Replacement

Windshield Outside Moisture Sensor Replacement

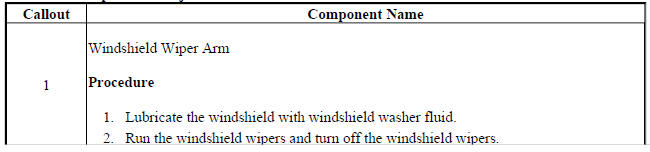

WINDSHIELD WIPER ARM ADJUSTMENT

Fig. 35: Adjusting Windshield Wiper Arm
Fig. 35: Adjusting Windshield Wiper Arm

Windshield Wiper Arm Adjustment

Windshield Wiper Arm Adjustment

Windshield Wiper Arm Adjustment
