Buick Encore: Body lock pillar upper trim panel replacement

Buick Encore 2012-2019 Service Manual / Accessories & Equipment / Interior Trim and Paneling / Body lock pillar upper trim panel replacement

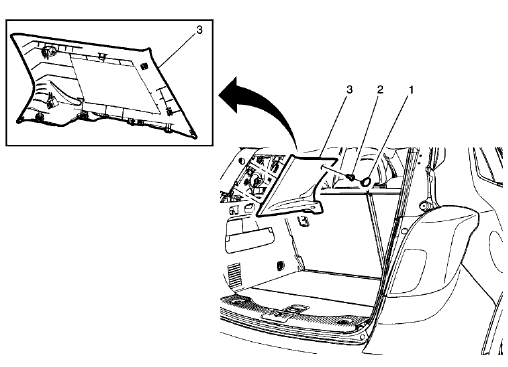

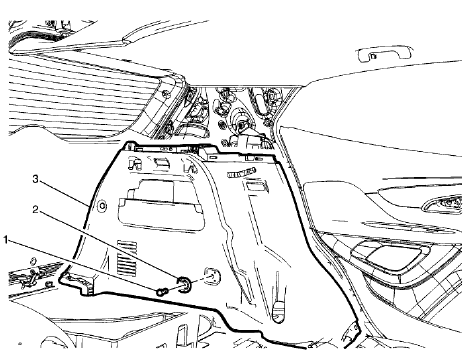

Fig. 28: Body Lock Pillar Upper Trim Panel
Fig. 28: Body Lock Pillar Upper Trim Panel

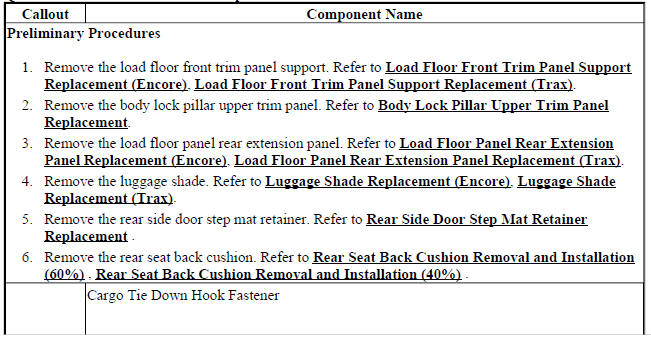

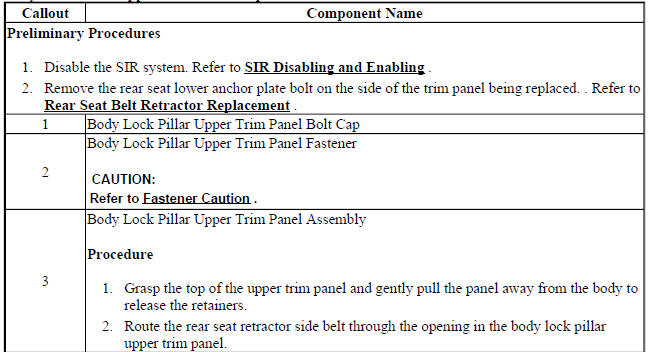

Body Lock Pillar Upper Trim Panel Replacement

Body Lock Pillar Upper Trim Panel Replacement

QUARTER LOWER REAR TRIM PANEL REPLACEMENT

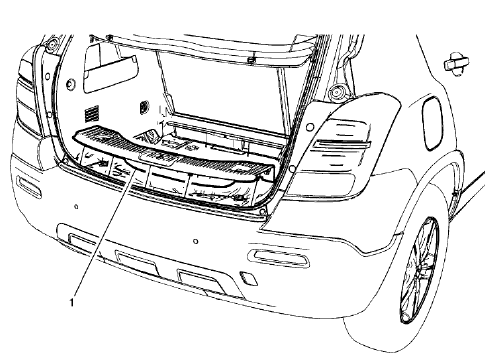

Fig. 29: Quarter Lower Rear Trim Panel
Fig. 29: Quarter Lower Rear Trim Panel

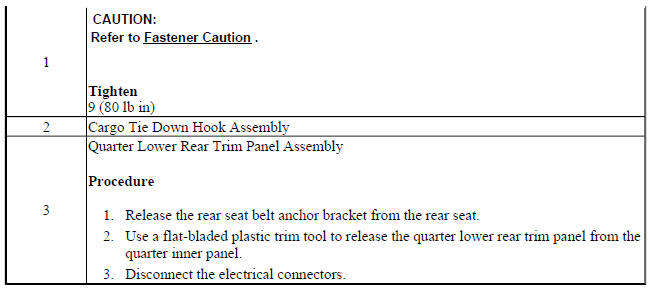

Quarter Lower Rear Trim Panel Replacement

Quarter Lower Rear Trim Panel Replacement

Quarter Lower Rear Trim Panel Replacement

QUARTER STOWAGE POCKET DOOR REPLACEMENT (LEFT SIDE)

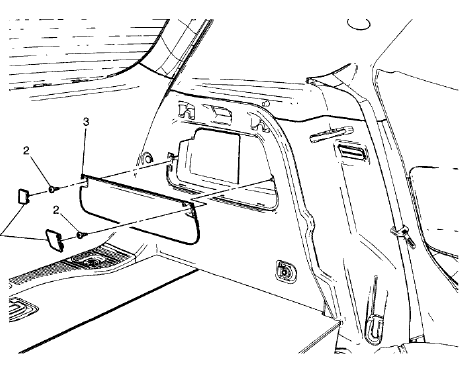

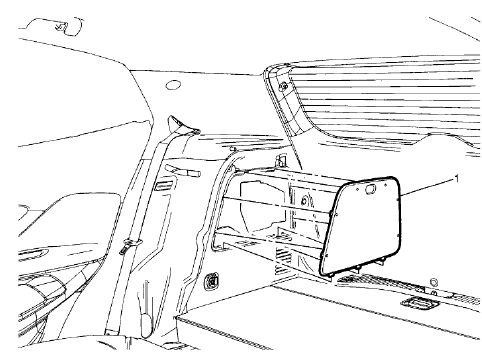

Fig. 30: Quarter Stowage Pocket Door - Left Side Outer
Fig. 30: Quarter Stowage Pocket Door - Left Side Outer

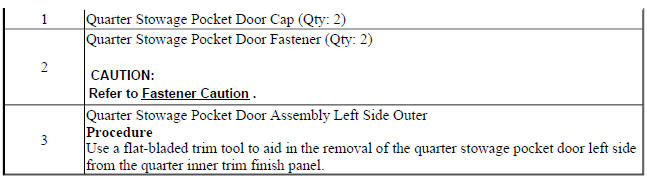

Quarter Stowage Pocket Door Replacement (Left Side)

Quarter Stowage Pocket Door Replacement (Left Side)

Quarter Stowage Pocket Door Replacement (Left Side)

QUARTER STOWAGE POCKET DOOR REPLACEMENT (RIGHT SIDE)

Fig. 31: Quarter Stowage Pocket Door - Right Side Outer
Fig. 31: Quarter Stowage Pocket Door - Right Side Outer

Quarter Stowage Pocket Door Replacement (Right Side)

Quarter Stowage Pocket Door Replacement (Right Side)

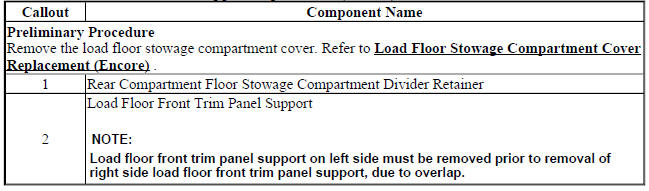

LOAD FLOOR FRONT TRIM PANEL SUPPORT REPLACEMENT (ENCORE)

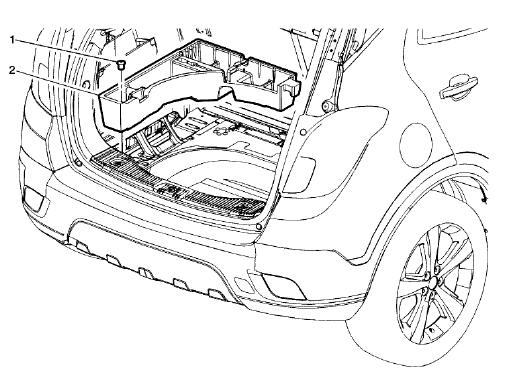

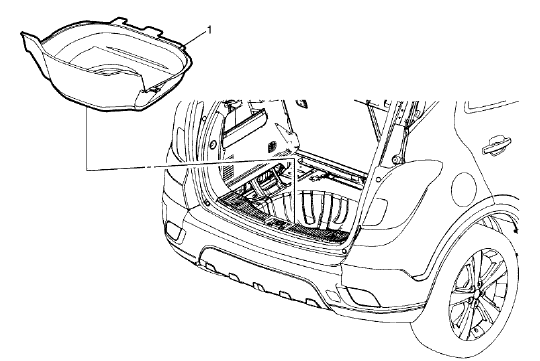

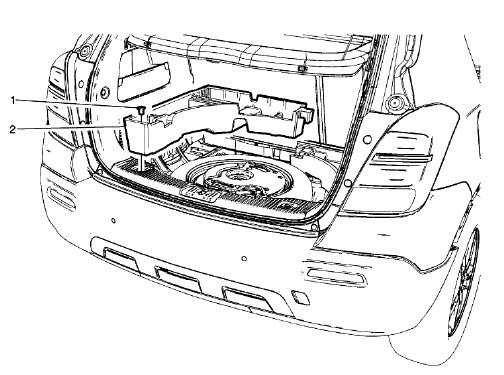

Fig. 32: Load Floor Front Trim Panel Support
Fig. 32: Load Floor Front Trim Panel Support

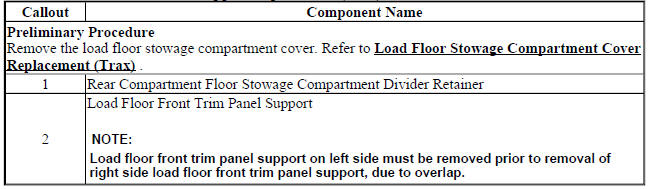

Load Floor Front Trim Panel Support Replacement (Encore)

Load Floor Front Trim Panel Support Replacement (Encore)

LOAD FLOOR FRONT TRIM PANEL SUPPORT REPLACEMENT (Encore)

Fig. 33: Load Floor Front Trim Panel Support
Fig. 33: Load Floor Front Trim Panel Support

Load Floor Front Trim Panel Support Replacement (Encore)

Load Floor Front Trim Panel Support Replacement (Encore)

LOAD FLOOR PANEL CENTER SUPPORT REPLACEMENT (ENCORE)

Fig. 34: Load Floor Panel Center Support
Fig. 34: Load Floor Panel Center Support

Load Floor Panel Center Support Replacement (Encore)

Load Floor Panel Center Support Replacement (Encore)

LOAD FLOOR PANEL REAR EXTENSION PANEL REPLACEMENT (ENCORE)

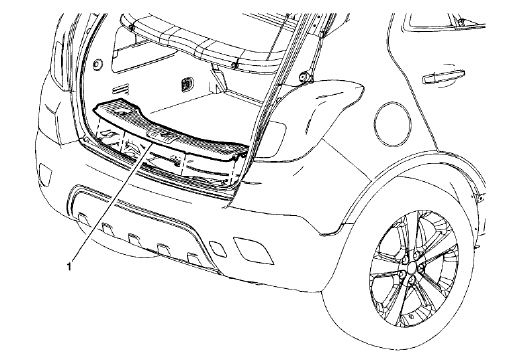

Fig. 35: Load Floor Panel Rear Extension Panel
Fig. 35: Load Floor Panel Rear Extension Panel

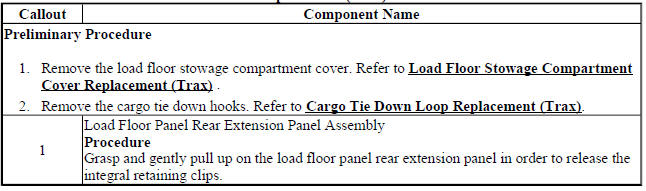

Load Floor Panel Rear Extension Panel Replacement (Encore)

Load Floor Panel Rear Extension Panel Replacement (Encore)

LOAD FLOOR PANEL REAR EXTENSION PANEL REPLACEMENT (Encore)

Fig. 36: Load Floor Panel Rear Extension Panel
Fig. 36: Load Floor Panel Rear Extension Panel

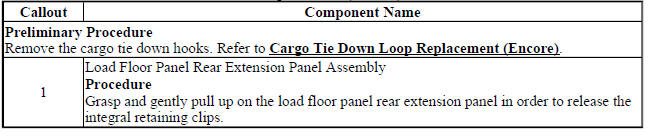

Load Floor Panel Rear Extension Panel Replacement (Encore)

Load Floor Panel Rear Extension Panel Replacement (Encore)

REAR SIDE DOOR TRIM REPLACEMENT

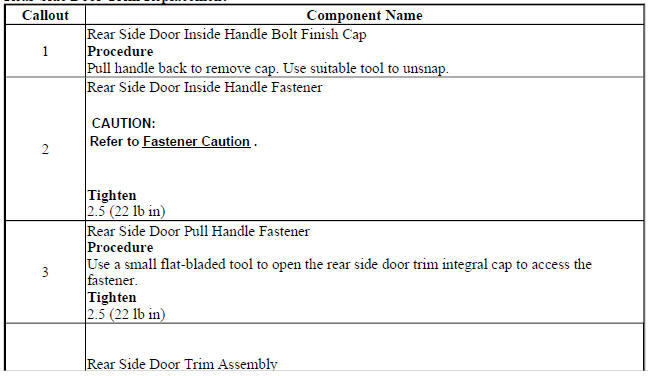

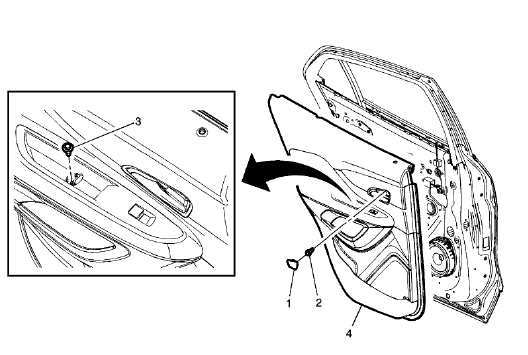

Fig. 37: Rear Side Door Trim
Fig. 37: Rear Side Door Trim

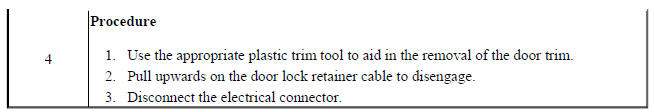

Rear Side Door Trim Replacement

Rear Side Door Trim Replacement

Rear Side Door Trim Replacement
