Buick Encore: Luggage shade replacement (encore)

Buick Encore 2012-2019 Service Manual / Accessories & Equipment / Interior Trim and Paneling / Luggage shade replacement (encore)

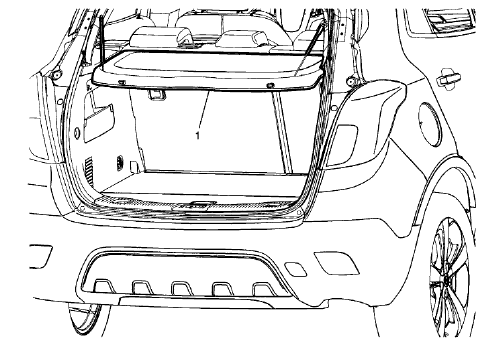

Fig. 38: Luggage Shade
Fig. 38: Luggage Shade

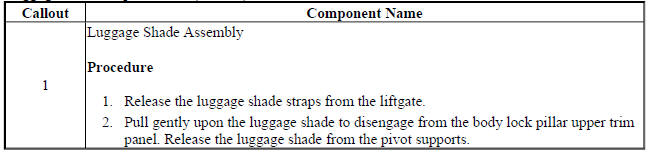

Luggage Shade Replacement (Encore)

Luggage Shade Replacement (Encore)

LUGGAGE SHADE REPLACEMENT (Encore)

Fig. 39: Luggage Shade
Fig. 39: Luggage Shade

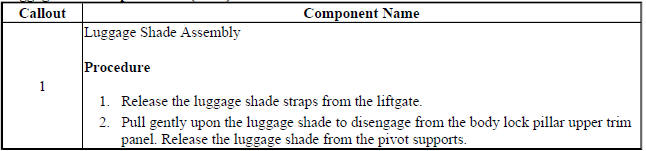

Luggage Shade Replacement (Encore)

Luggage Shade Replacement (Encore)

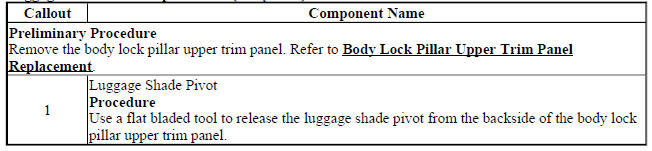

LUGGAGE SHADE PIVOT REPLACEMENT (BODY SIDE)

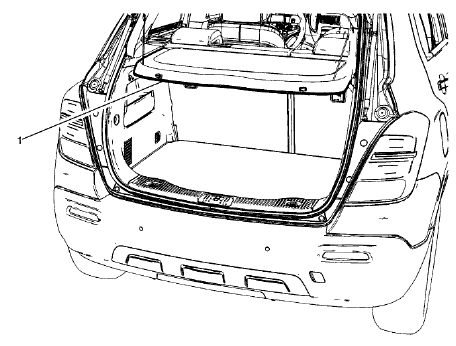

Fig. 40: Luggage Shade Pivot (Body Side)
Fig. 40: Luggage Shade Pivot (Body Side)

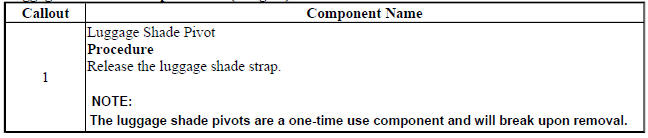

Luggage Shade Pivot Replacement (Body Side)

Luggage Shade Pivot Replacement (Body Side)

LUGGAGE SHADE PIVOT REPLACEMENT (LUGGAGE SHADE)

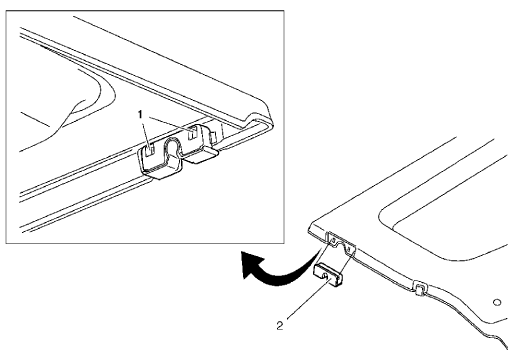

Fig. 41: Luggage Shade Pivot (Luggage Shade)
Fig. 41: Luggage Shade Pivot (Luggage Shade)

Luggage Shade Pivot Replacement (Luggage Shade)

Luggage Shade Pivot Replacement (Luggage Shade)

LUGGAGE SHADE PIVOT REPLACEMENT (LIFTGATE)

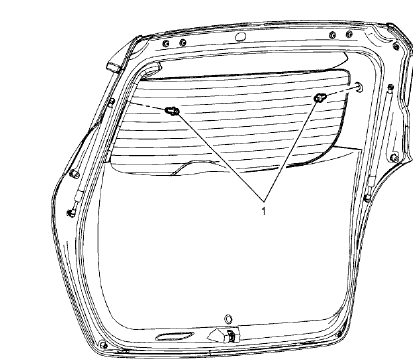

Fig. 42: Luggage Shade Pivot - Liftgate
Fig. 42: Luggage Shade Pivot - Liftgate

Luggage Shade Pivot Replacement (Liftgate)

Luggage Shade Pivot Replacement (Liftgate)

LIFTGATE UPPER CENTER TRIM FINISH PANEL REPLACEMENT

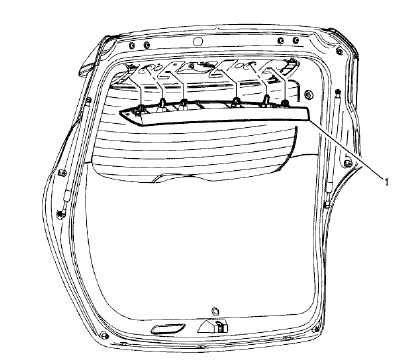

Fig. 43: Liftgate Upper Center Trim Finish Panel
Fig. 43: Liftgate Upper Center Trim Finish Panel

Liftgate Upper Center Trim Finish Panel Replacement

Liftgate Upper Center Trim Finish Panel Replacement

LIFTGATE UPPER SIDE TRIM FINISH PANEL REPLACEMENT

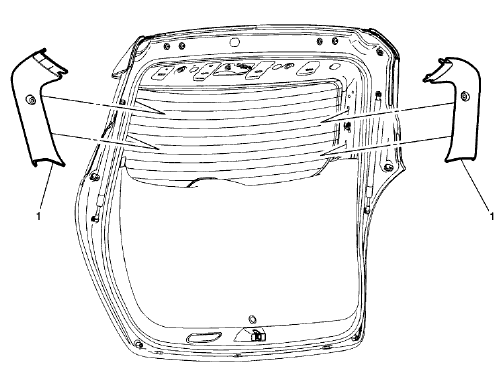

Fig. 44: Liftgate Upper Side Trim Finish Panel

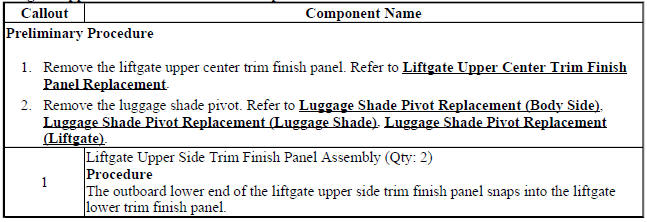

Fig. 44: Liftgate Upper Side Trim Finish Panel

Liftgate Upper Side Trim Finish Panel Replacement

Liftgate Upper Side Trim Finish Panel Replacement

LIFTGATE LOWER TRIM FINISH PANEL REPLACEMENT

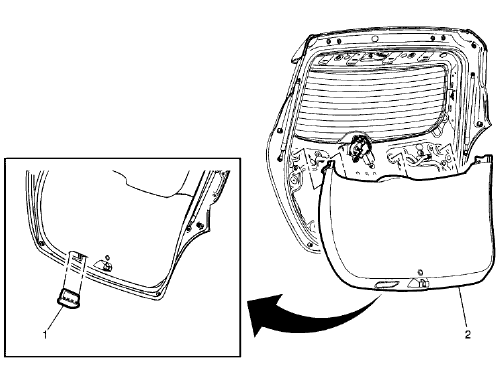

Fig. 45: Liftgate Lower Trim Finish Panel

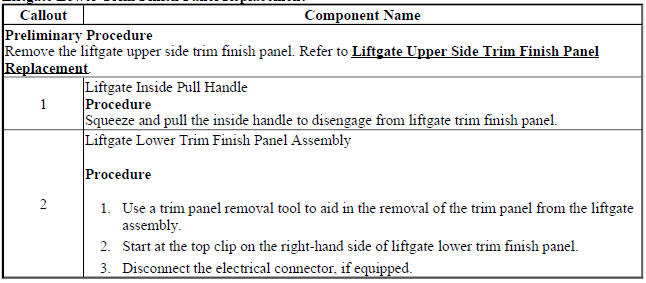

Fig. 45: Liftgate Lower Trim Finish Panel

Liftgate Lower Trim Finish Panel Replacement

Liftgate Lower Trim Finish Panel Replacement

Cargo tie down loop replacement (encore)

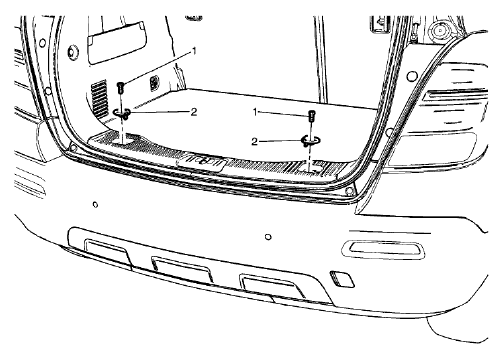

Fig. 46: Cargo Tie Down Loop
Fig. 46: Cargo Tie Down Loop

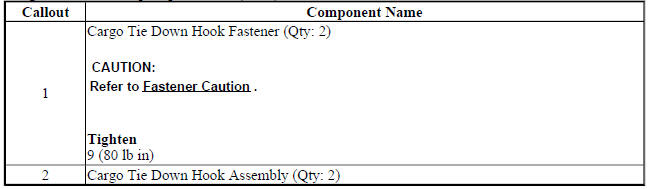

Cargo Tie Down Loop Replacement (Encore)

Cargo Tie Down Loop Replacement (Encore)

CARGO TIE DOWN LOOP REPLACEMENT (Encore)

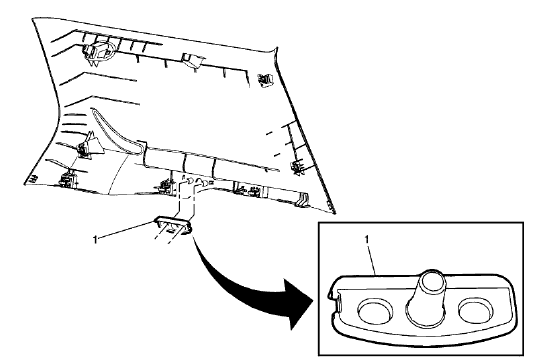

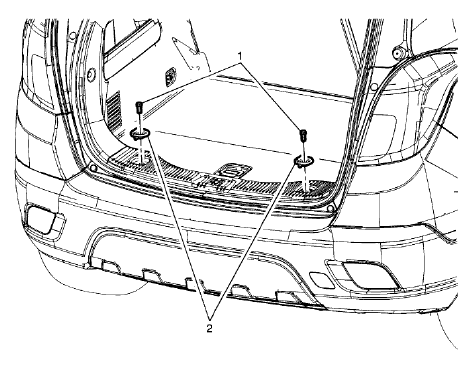

Fig. 47: Cargo Tie Down Loop
Fig. 47: Cargo Tie Down Loop

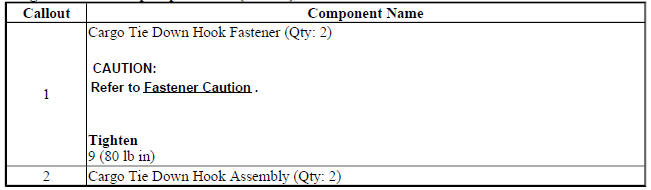

Cargo Tie Down Loop Replacement (Encore)

Cargo Tie Down Loop Replacement (Encore)

BODY REAR OUTER PANEL PRESSURE RELIEF VALVE REPLACEMENT

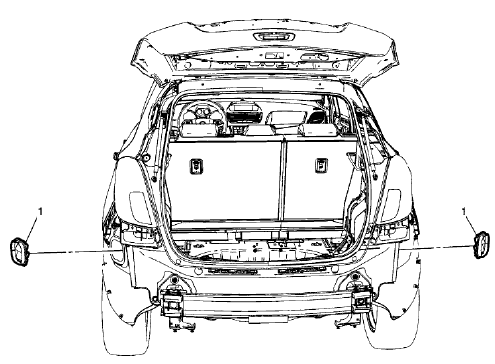

Fig. 48: Body Rear Outer Panel Pressure Relief Valve
Fig. 48: Body Rear Outer Panel Pressure Relief Valve

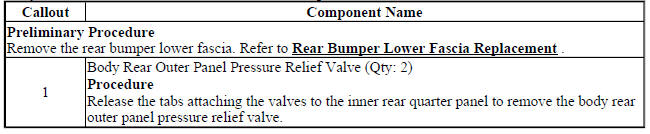

Body Rear Outer Panel Pressure Relief Valve Replacement

Body Rear Outer Panel Pressure Relief Valve Replacement
