Buick Encore: Engine Compartment Fuse Block

Buick Encore 2020-2024 Owners Manual / Vehicle Care / Electrical System / Engine Compartment Fuse Block

Engine Compartment Fuse Block

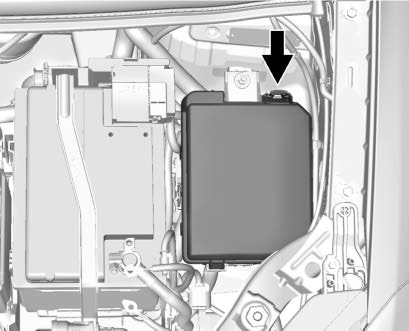

To remove the fuse block cover, squeeze the clip and lift it up.

Caution

Spilling liquid on any electrical component on the vehicle may damage it. Always keep the covers on any electrical component.

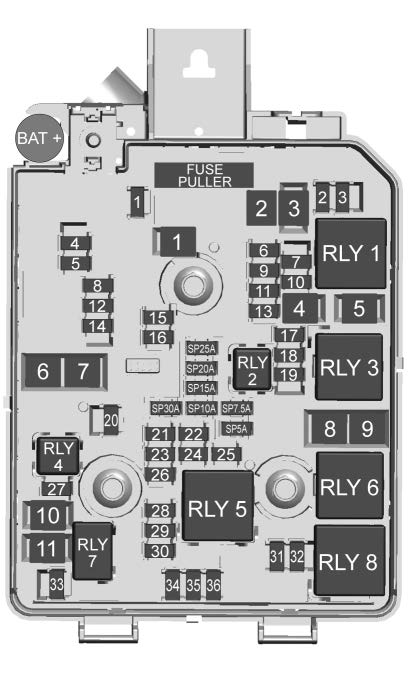

Engine Compartment Fuse Block

The vehicle may not be equipped with all of the fuses, relays, and features shown.

Mini Fuses /Usage

  1. Sunroof
  2. Exterior mirror switch/Driver side power window/Rain sensor/Universal remote system
  3.  Canister vent solenoid
  4.  -
  5. Electronic brake control module valve
  6.  Intelligent battery sensor
  7. Electric steering column lock
  8.  Transmission control module/FICM
  9. Automatic occupancy sensing module
  10. Headlamp leveling switch/Headlamp leveling motor/Rear vision camera/ Interior rearview mirror
  11.  Rear wiper
  12. Rear window defogger
  13. Power lumbar switch
  14. Exterior mirror heater
  15. Fuel system control module battery
  16. Heated seat module/ Memory module
  17. TIM DC DC converter/Fuel system control module RC/ Compass module
  18. Engine control module RC/ Transmission control module RC/ FICM RC
  19. Fuel pump
  20. -
  21. Fan relay (auxiliary BEC)
  22. -
  23. Ignition coil/ Injector coil
  24. Washer pump
  25. Automatic headlamp leveling
  26. EMS Var 1
  27. -/Auxiliary heater pump
  28. -/Engine control module powertrain/ Ignition 3
  29. Engine control module powertrain/ Ignition 1/Ignition 2
  30. EMS Var 2
  31. Left high-beam headlamp
  32. Right high-beam headlamp
  33. Engine control module battery
  34. Horn
  35. A/C clutch
  36. Front fog lamps

J-Case Fuses/ Usage

  1. Electronic brake control module pump
  2. Front wiper
  3. Linear power module blower
  4. IEC RC
  5. -
  1. -/Starter solenoid
  2. Cooling fan low - mid
  3. Cooling fan - high
  4. EVP
  5. Starter solenoid/ Starter pinion

U-Micro Relays/ Usage

  1. Fuel pump
  1. -/Auxiliary heater pump

HC-Micro Relays/ Usage

  1. Starter/Starter pinion
  1. Starter solenoid

Mini Relays /Usage

  1. Run/Crank
  1. Cooling fan - mid
  1. Powertrain relay

Mini Relays/ Usage

  1. Cooling fan - low

HC-Mini Relays/ Usage

  1. Cooling fan - high

Auxiliary Fuse Block

Auxiliary Fuse Block

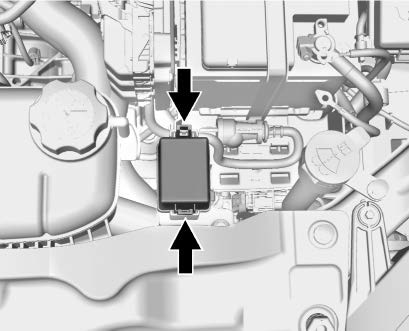

To remove the fuse block cover, squeeze the clips and lift it up.

Caution

Spilling liquid on any electrical component on the vehicle may damage it. Always keep the covers on any electrical component.

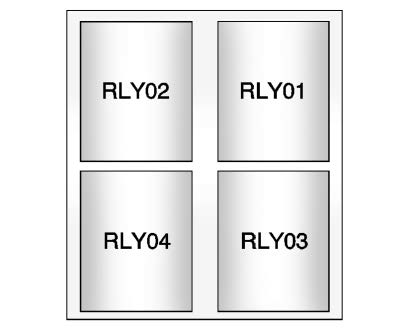

Auxiliary Fuse Block

The vehicle may not be equipped with all of the relays and features shown.

Relays/ Usage

01 Electric vacuum pump

02 Cooling fan control 1

03 Cooling fan control 2

04 -
