Buick Encore: Shoulder Belt Height Adjuster
The vehicle has a shoulder belt height adjuster for the driver and front outboard passenger seating positions.
Adjust the height so the shoulder portion of the belt is on the shoulder and not falling off of it. The belt should be close to, but not contacting, the neck. Improper shoulder belt height adjustment could reduce the effectiveness of the seat belt in a crash. See How to Wear Seat Belts Properly
.gif)

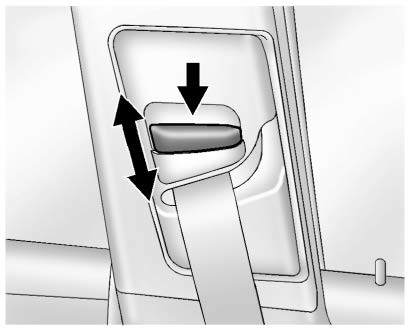

To move the shoulder belt height adjuster down, push down on the release button and move the height adjuster to the desired position. You can move the height adjuster up by pushing up on the shoulder belt guide.
After the adjuster is set to the desired position, try to move it down without pushing the release button to make sure it has locked into position.
Seat Belt Pretensioners
This vehicle has seat belt pretensioners for the front outboard occupants. Although the seat belt pretensioners cannot be seen, they are part of the seat belt assembly.
They can help tighten the seat belts during the early stages of a moderate to severe frontal, near frontal, or rear crash if the threshold conditions for pretensioner activation are met. Seat belt pretensioners can also help tighten the seat belts in a side crash or a rollover event.
Pretensioners work only once. If the pretensioners activate in a crash, the pretensioners and probably other parts of the vehicle's seat belt system will need to be replaced.
See Replacing Seat Belt System Parts after a Crash
Do not sit on the outboard seat belt while entering or exiting the vehicle or at any time while sitting in the seat. Sitting on the seat belt can damage the webbing and hardware.
Rear Seat Belt Comfort Guides
Rear seat belt comfort guides may provide added seat belt comfort for older children who have outgrown booster seats and for some adults.
When installed on a shoulder belt, the comfort guide positions the belt away from the neck and head.
Comfort guides are available through your dealer for the rear outboard seating positions.
Instructions are included with the guides.
