Buick Encore: Trouble Shooting - Basic Procedures

Buick Encore 2012-2019 Service Manual / General Information & Maintenance / Trouble Shooting - Basic Procedures

NOTE: This is GENERAL information. This article is not intended to be specific to any unique situation or individual vehicle configuration. The purpose of this Trouble Shooting information is to provide a list of common causes to problem symptoms. For model-specific Trouble Shooting, refer to SUBJECT, DIAGNOSTIC, or TESTING articles available in the section(s) you are accessing.

ACCESSORIES & ELECTRICAL

CHARGING SYSTEM TROUBLE SHOOTING

NOTE: This is GENERAL information. This article is not intended to be specific to any unique situation or individual vehicle configuration. The purpose of this Trouble Shooting information is to provide a list of common causes to problem symptoms. For model-specific Trouble Shooting, refer to SUBJECT, DIAGNOSTIC, or TESTING articles available in the section(s) you are accessing.

NOTE: This is GENERAL information. This article is not intended to be specific to any unique situation or individual vehicle configuration. The purpose of this Trouble Shooting information is to provide a list of common causes to problem symptoms. For model-specific Trouble Shooting, refer to SUBJECT, DIAGNOSTIC, or TESTING articles available in the section(s) you are accessing.

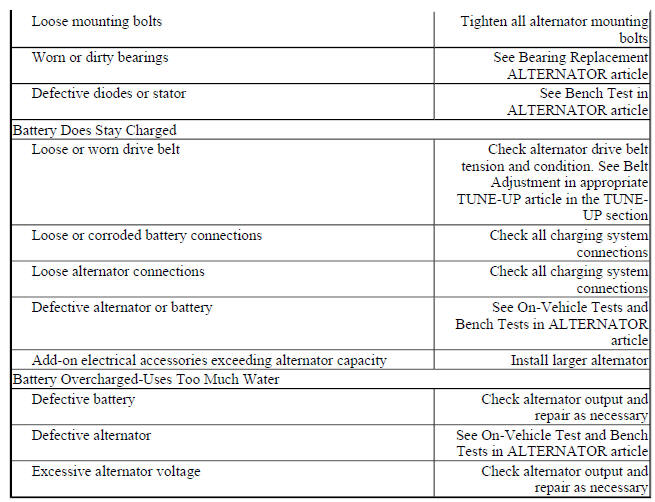

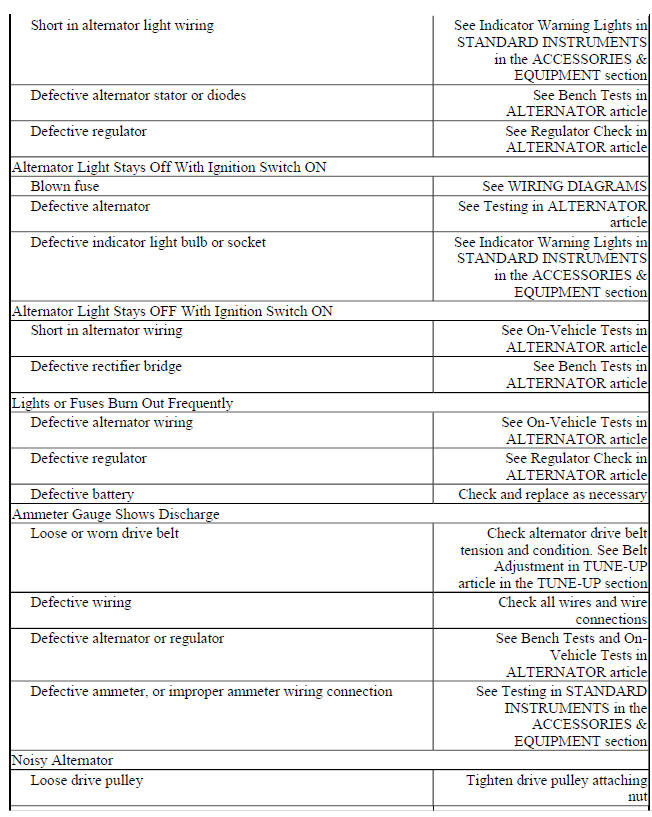

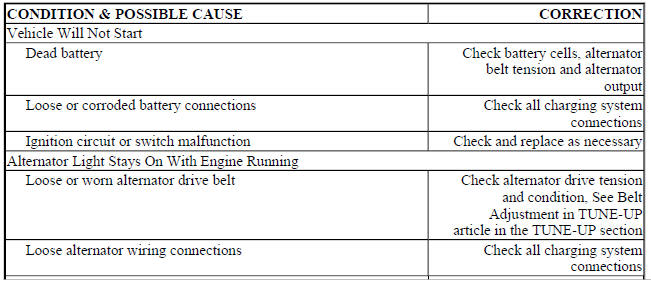

BASIC CHARGING SYSTEM TROUBLE SHOOTING CHART

BASIC CHARGING SYSTEM TROUBLE SHOOTING CHART

BASIC CHARGING SYSTEM TROUBLE SHOOTING CHART

BASIC CHARGING SYSTEM TROUBLE SHOOTING CHART

IGNITION SYSTEM TROUBLE SHOOTING

NOTE: This is GENERAL information. This article is not intended to be specific to any unique situation or individual vehicle configuration. The purpose of this Trouble Shooting information is to provide a list of common causes to problem symptoms. For model-specific Trouble Shooting, refer to SUBJECT, DIAGNOSTIC, or TESTING articles available in the section(s) you are accessing.

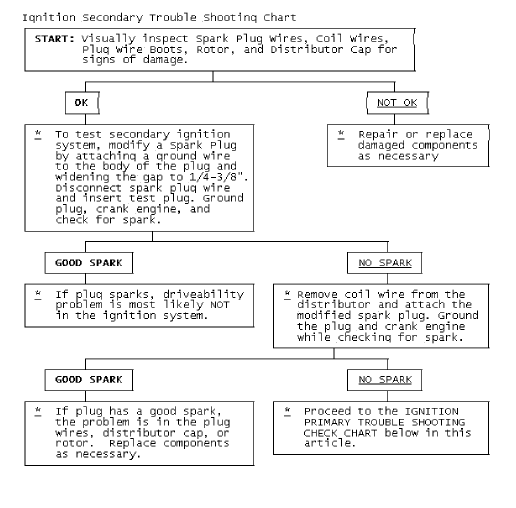

Fig. 1: Ignition Secondary Trouble Shooting Chart
Fig. 1: Ignition Secondary Trouble Shooting Chart

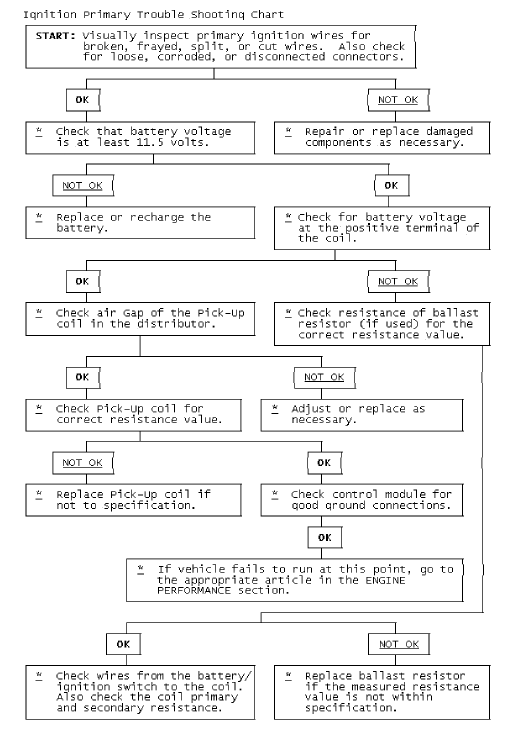

Fig. 2: Ignition Primary Trouble Shooting Chart
Fig. 2: Ignition Primary Trouble Shooting Chart

STARTER TROUBLE SHOOTING

NOTE: This is GENERAL information. This article is not intended to be specific to any unique situation or individual vehicle configuration. The purpose of this Trouble Shooting information is to provide a list of common causes to problem symptoms. For model-specific Trouble Shooting, refer to SUBJECT, DIAGNOSTIC, or TESTING articles available in the section(s) you are accessing.

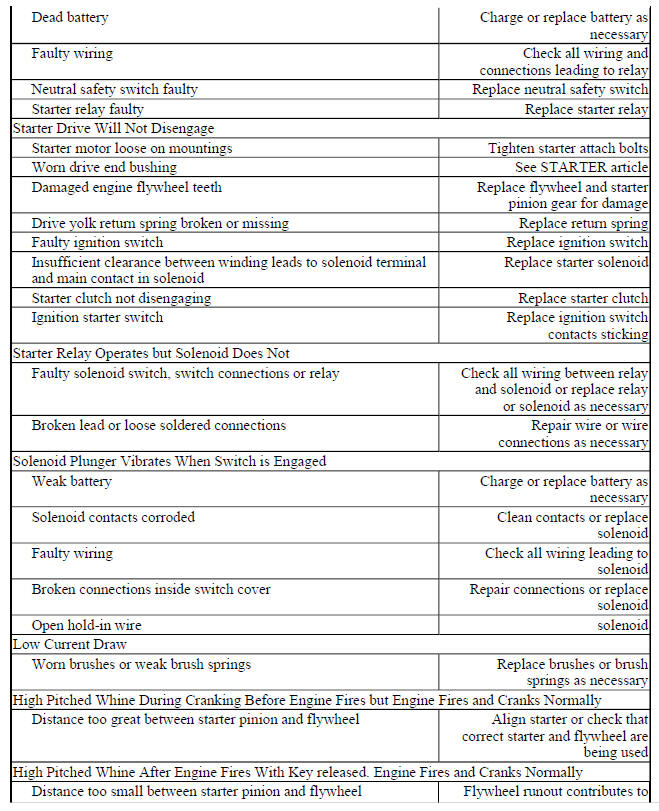

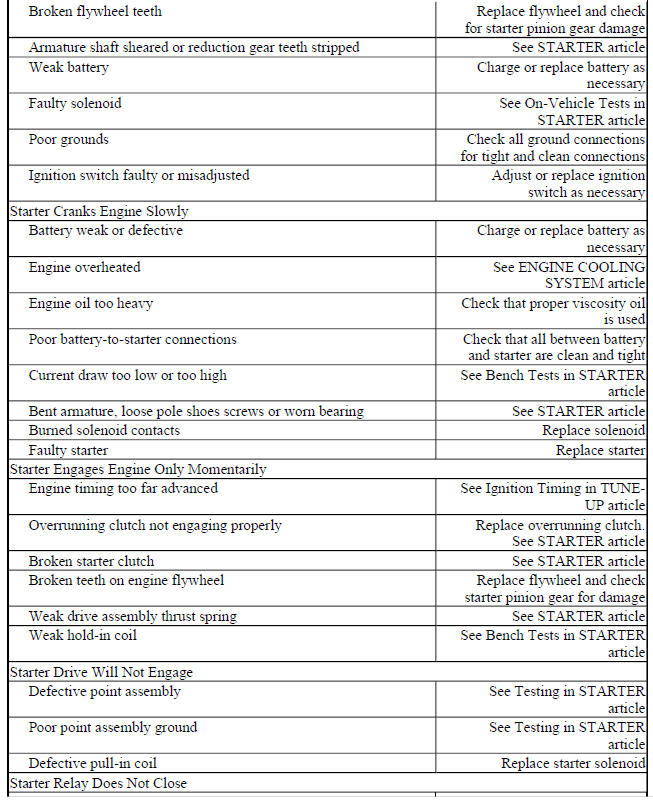

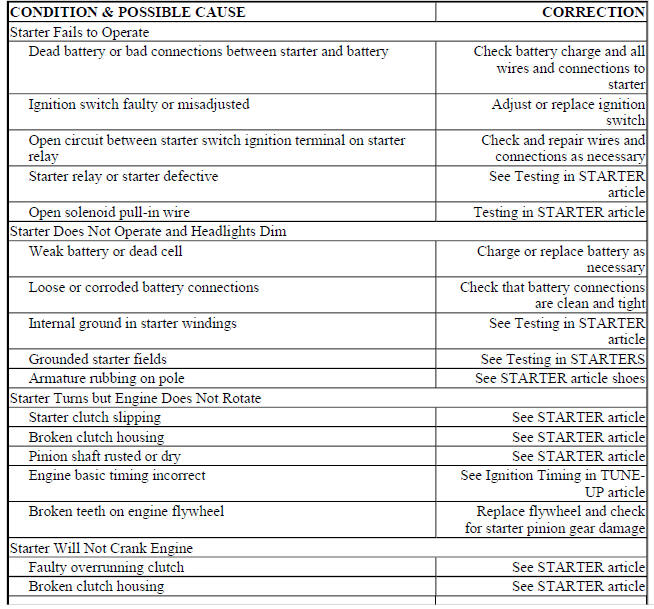

BASIC STARTER TROUBLE SHOOTING CHART

BASIC STARTER TROUBLE SHOOTING CHART

BASIC STARTER TROUBLE SHOOTING CHART

BASIC STARTER TROUBLE SHOOTING CHART
