Buick Encore: Sunroof
SCHEMATIC WIRING DIAGRAMS
SPECIFICATIONS
FASTENER TIGHTENING SPECIFICATIONS

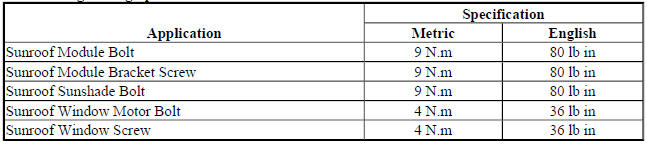

Fastener Tightening Specifications
.jpg)
SCHEMATIC WIRING DIAGRAMS

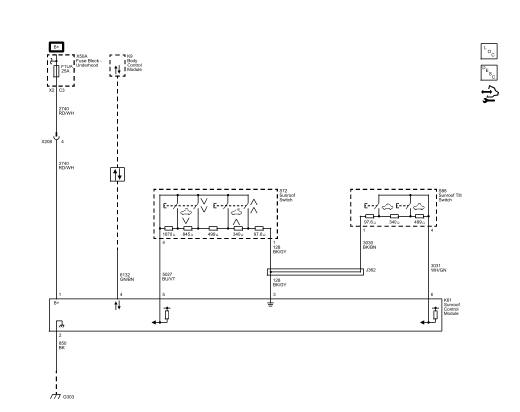

SUNROOF WIRING SCHEMATICS (ENCORE)
Power Sunroof
.jpg)
SUNROOF WIRING SCHEMATICS (Encore)
Power Sunroof
.jpg)

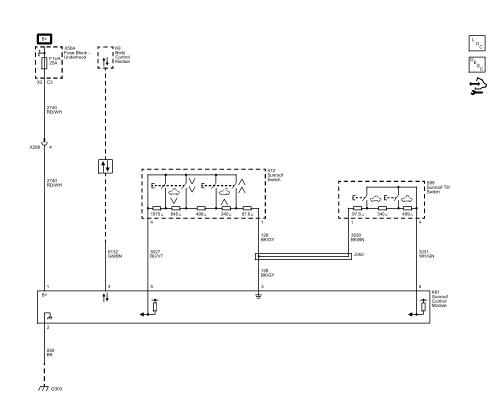

Fig. 2: Power Sunroof
- Sunroof - Diagnostic information and procedures
- Sunroof - Repair instructions
- Sunroof - Description and operation
READ NEXT:
Sunroof - Diagnostic information and procedures
DTC B3664: Sunroof position select switch
DIAGNOSTIC CODE INDEX
DTC B3664: SUNROOF POSITION SELECT SWITCH
Diagnostic Instructions
Perform the Diagnostic System Check - Vehicle prior to using thi
Sunroof - Repair instructions
SUNROOF AIR DEFLECTOR REPLACEMENT
Fig. 3: Sunroof Air Deflector
Sunroof Air Deflector Replacement
SUNROOF AIR DEFLECTOR COVER REPLACEMENT
Fig. 4: Sunroof Air Deflector Cover
Sunroof Air Deflecto
Sunroof - Description and operation
SUNROOF DESCRIPTION AND OPERATION
The tilt/slide sunroof consists of a moving glass panel and a manual sunshade.
In the tilt/slide sunroof system
the rear of the glass tilts up for venting and slides
